TOPLINE® Telescopic Dump Trailer

Bed Width: 83′
Bed Length: 14′-21′
GVWR: 15,400-22,000 lbs
GAWR: 14-10,000 lbs/axle
HH Topline Telescopic Dump Trailer Front Up

10-Gauge Steel Sides – Built to Resist Warping and Denting

Heavy-duty steel walls provide lasting protection against impact, delivering superior strength in demanding environments.

7-Gauge One-Piece Floor – Seamless Power for Heavy Loads

The thick, one-piece steel floor ensures a stable platform that won’t flex under pressure, enhancing durability and lifespan.

Custom Preformed 7-Gauge Top Rail – Strength Where it Matters.

The heavy-duty top rail reinforces the side walls with added strength and rigidity, while providing tough, extra protection against hard hits and rough impacts during heavy loading of debris and materials.

I-Beam Frame – Industrial-Grade Strength

Engineered for maximum load support, the I-Beam frame reinforces the trailer from end to end for unmatched performance under stress.

TOPLINE® Telescopic Dump Trailer

The TOPLINE® Telescopic Dump Trailer is built for serious work with unmatched structural integrity and a powerful lift system. Designed for heavy-duty loads and professional-grade hauling, this dump trailer combines smart features with rugged durability.

Key Benefits

10-Gauge Steel Sides – Built to Resist Warping and Denting

Heavy-duty steel walls provide lasting protection against impact, delivering superior strength in demanding environments.

7-Gauge One-Piece Floor – Seamless Power for Heavy Loads

The thick, one-piece steel floor ensures a stable platform that won't flex under pressure, enhancing durability and lifespan.

Custom Preformed 7-Gauge Top Rail – Strength Where it Matters.

The heavy-duty top rail reinforces the side walls with added strength and rigidity, while providing tough, extra protection against hard hits and rough impacts during heavy loading of debris and materials.

I-Beam Frame – Industrial-Grade Strength

Engineered for maximum load support, the I-Beam frame reinforces the trailer from end to end for unmatched performance under stress.

Integrated Toolbox – Storage Solution

Built for tough jobs, our spacious trailer tool box offers secure, organized storage for tools, pumps, and gear. Self-switching interior LED lights make it easy to find what you need, no matter how late you're working.

Adjustable Pintle Coupler – Flexible Towing Compatibility

Quickly adapt to different hitch heights and configurations, making it easier to connect with various tow vehicles.

Explore This Trailer

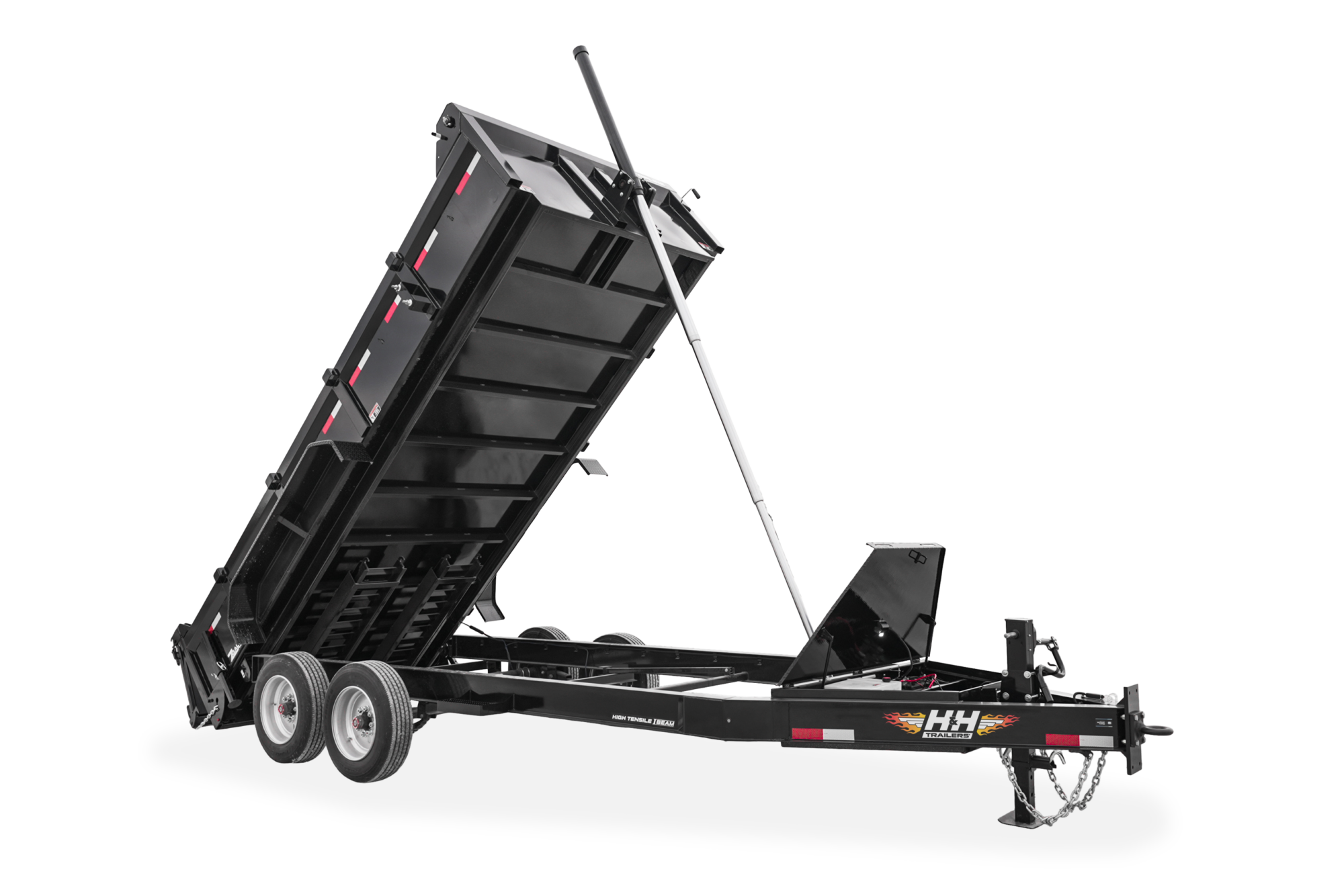

HH Topline Telescopic Dump Trailer Front Up

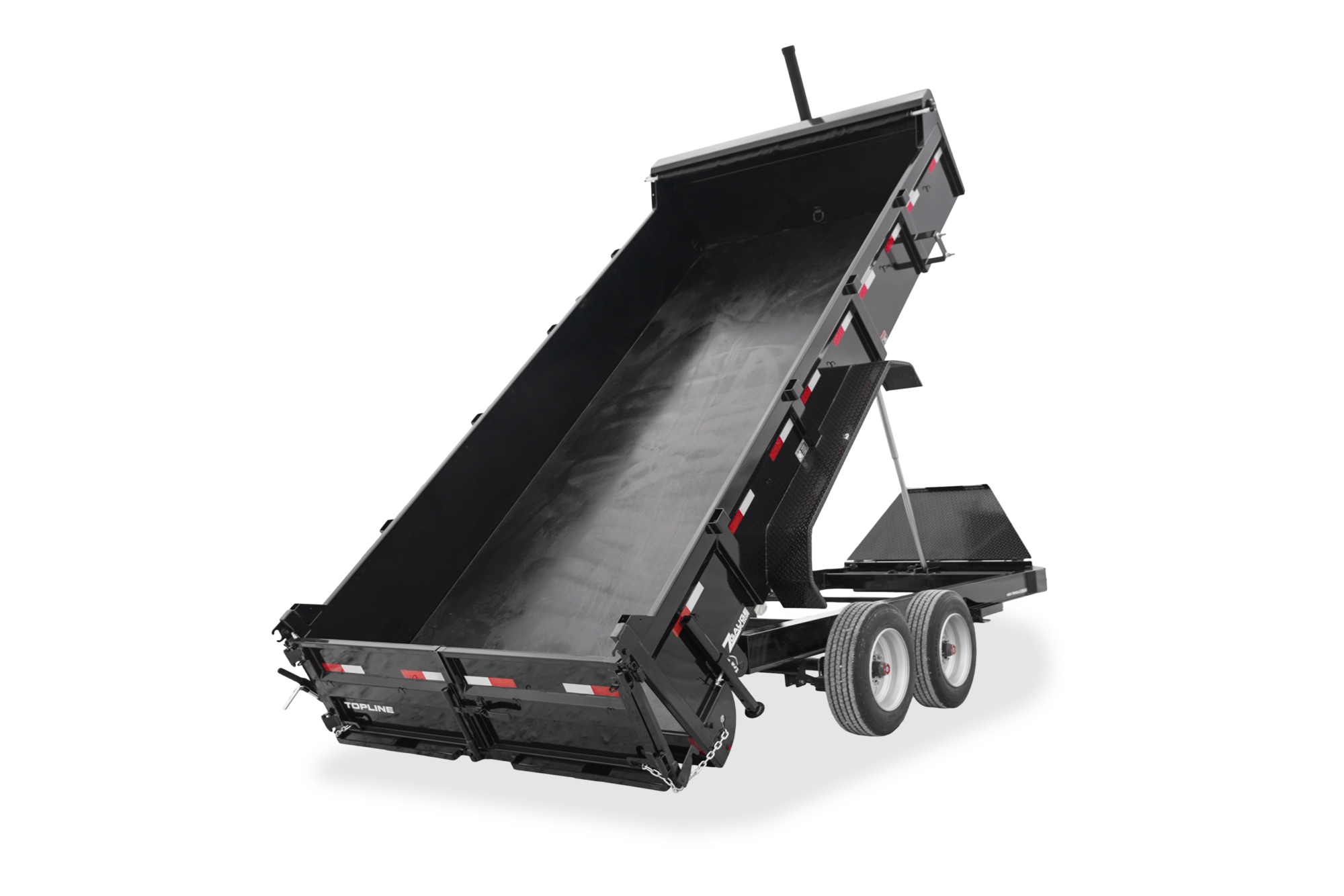

HH Topline Telescopic Dump Trailer Lifted Rear

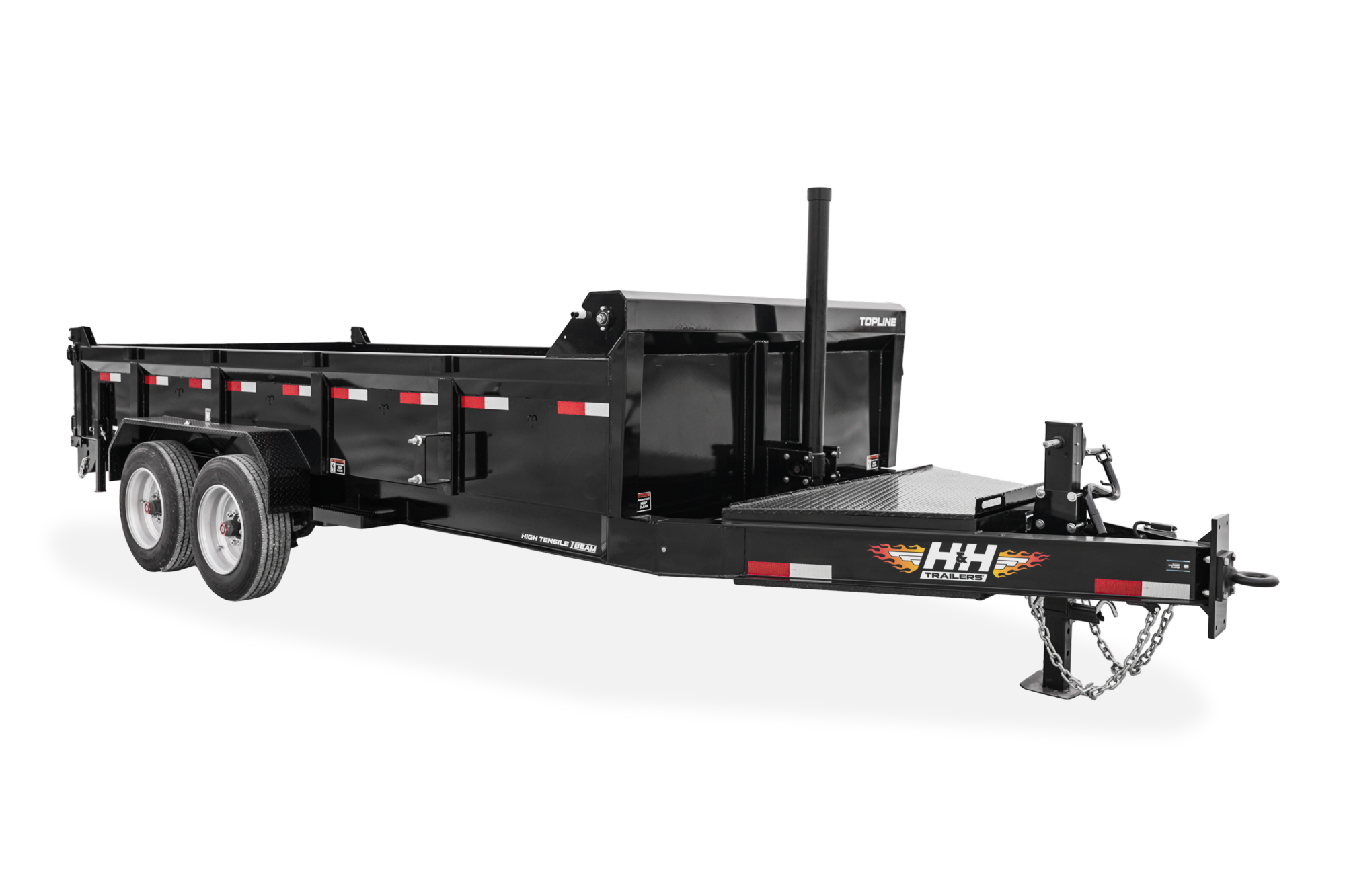

HH Topline Telescopic Dump Trailer Front Down

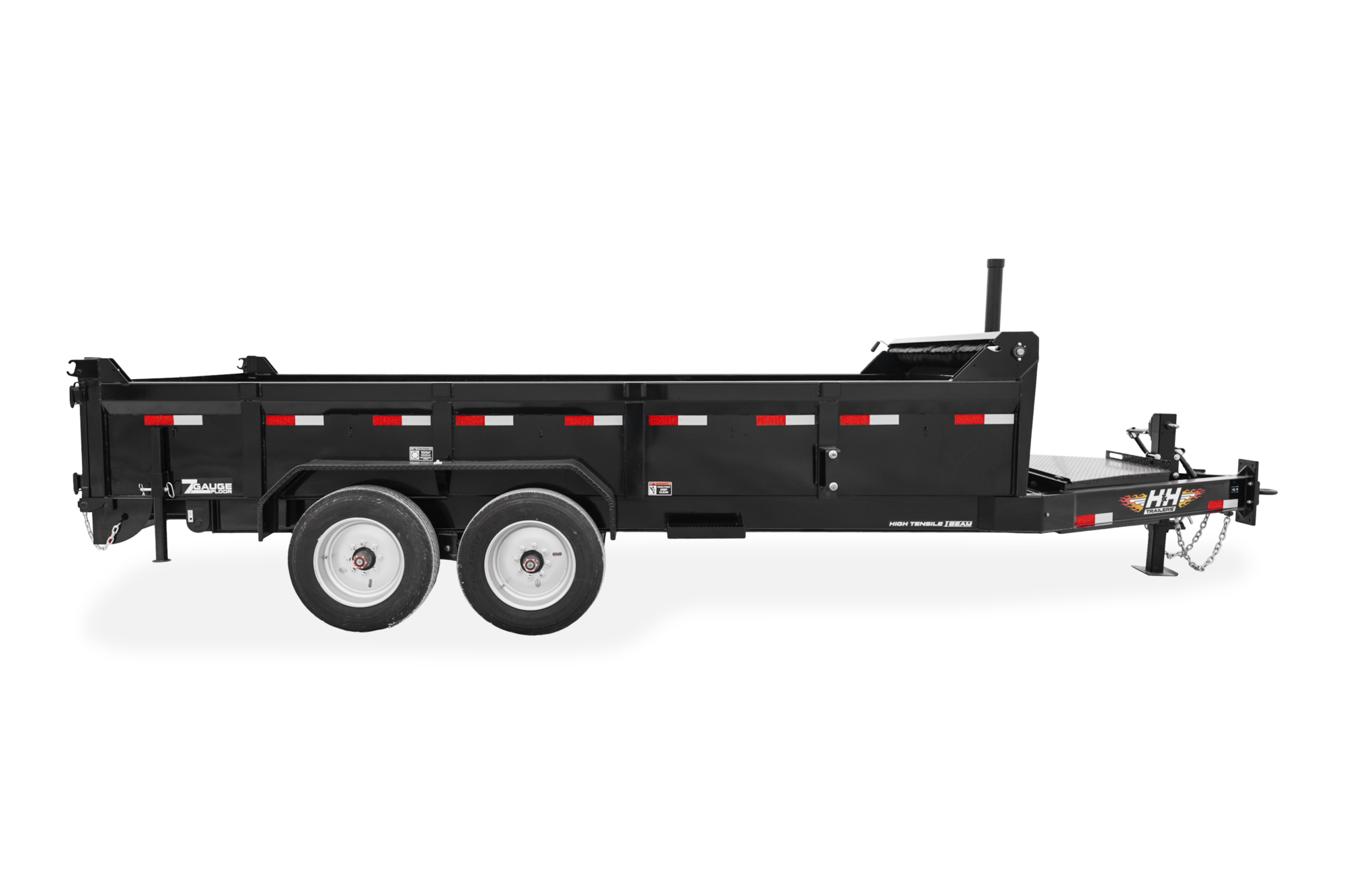

HH Topline Telescopic Dump Trailer Side Down

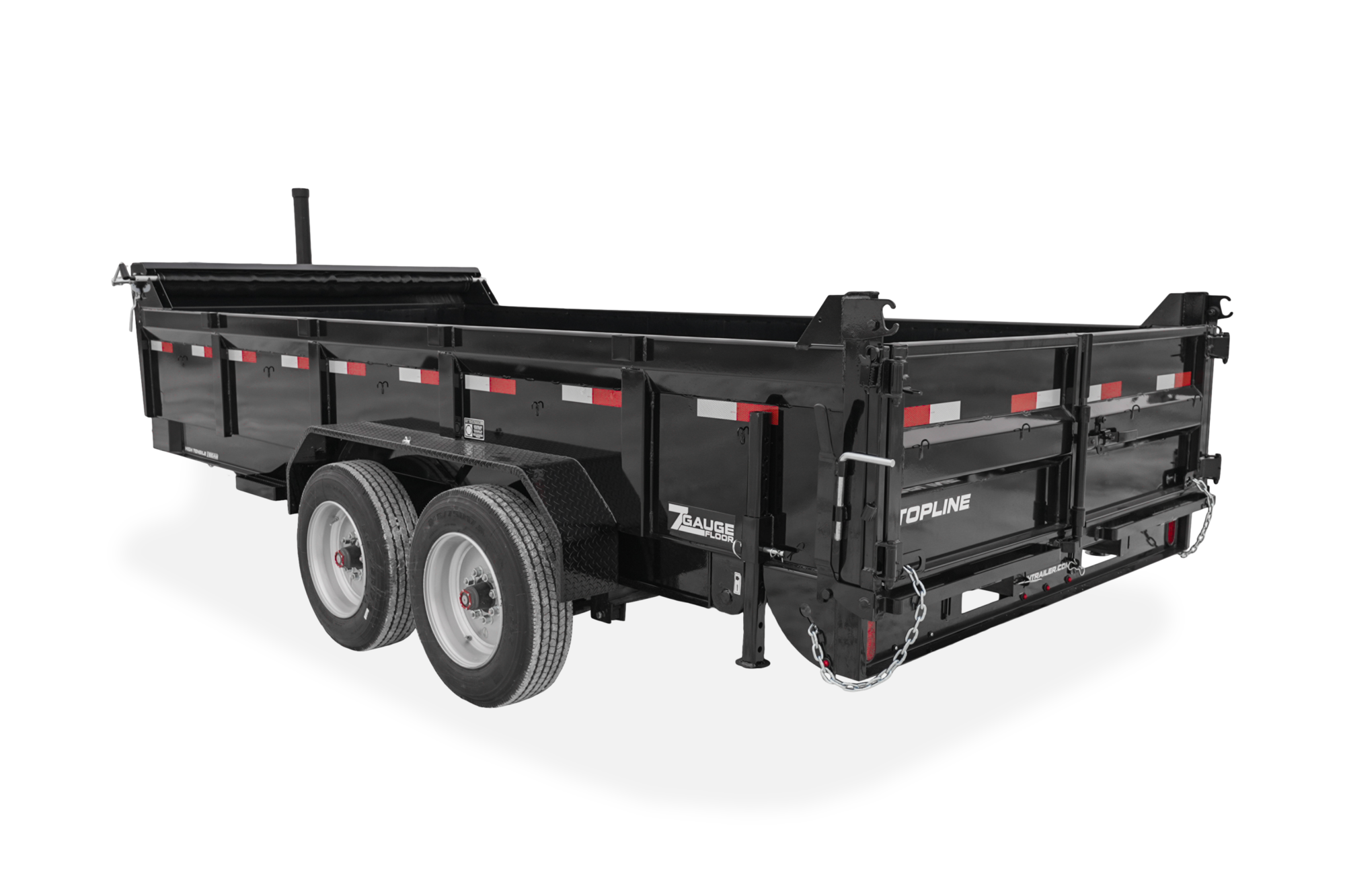

HH Topline Telescopic Dump Trailer Rear Down

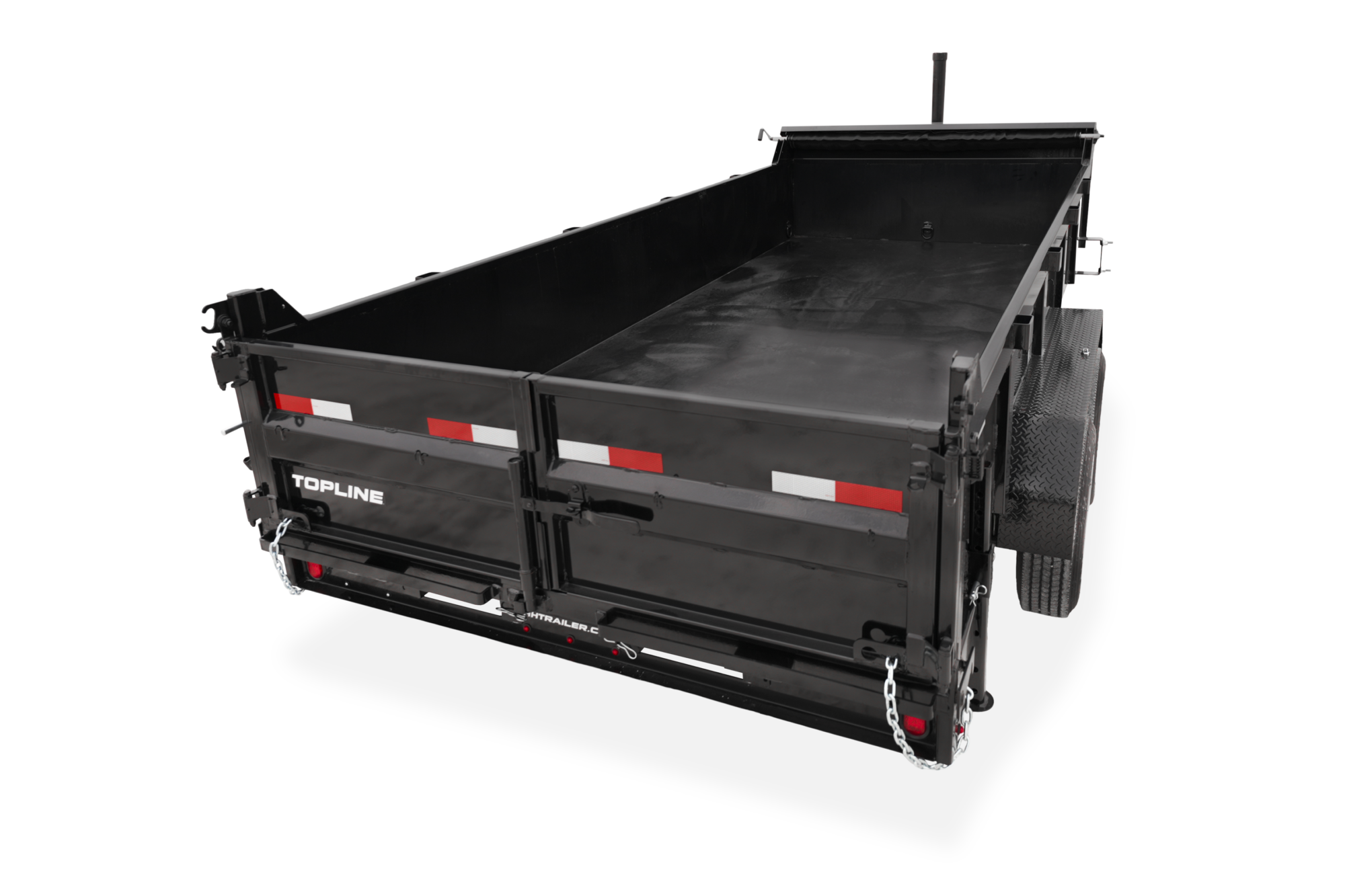

HH Topline Telescopic Dump Trailer High Rear

Model Color Options:

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose an H&H TOPLINE® Telescopic Dump Trailer?

Overview

The TOPLINE® Telescopic Dump Trailer from H&H Trailers is engineered to move the toughest loads with ease. Designed for professionals who demand reliability, it features a telescopic hoist system that delivers smooth and stable dumping—even when fully loaded. Whether you’re hauling construction debris, gravel, or equipment, this dump trailer is ready for work.

Available Models

Offered in a variety of lengths and weight ratings with bumper pull and gooseneck configurations, the TOPLINE® series is tailored to meet demanding industry needs. From commercial contractors to landscape crews, you’ll find the right size and GVWR to match your toughest jobs.

Standard Features

All models come standard with 10-gauge steel sides, a robust top rail, and a 7-gauge one-piece floor for unmatched durability. The I-Beam frame provides reinforced structural support, while the telescopic cylinder offers controlled lift performance. Oversized stake pockets and integrated stabilizer jacks assist with your heavier equipment hauling needs. Battery trickle charger, a sealed wiring harness, and a powder coat finish ensure reliable operation and long-term resilience.

Options

Customize your TOPLINE® dump trailer with hydraulic jacks, fork rack tubes, and protected solar charger for increased efficiency on-site.

Models

7' x 14'

Topline Telescopic I-Beam Dump
15400 lbs
Model #
HBTL8314-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4580 lbs

7' x 14'

Topline Telescopic I-Beam Dump Gooseneck
15400 lbs
Model #
HBTL8314-GN-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

7' x 14'

Topline Telescopic I-Beam Dump
17600 lbs
Model #
HBTL8314-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4820 lbs

7' x 14'

Topline Telescopic I-Beam Dump Gooseneck
17600 lbs
Model #
HBTL8314-GN-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5620 lbs

7' x 16'

Topline Telescopic I-Beam Dump
15400 lbs
Model #
HBTL8316-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4780 lbs

7' x 16'

Topline Telescopic I-Beam Dump Gooseneck
15400 lbs
Model #
HBTL8316-GN-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

7' x 16'

Topline Telescopic I-Beam Dump
17600 lbs
Model #
HBTL8316-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5020 lbs

7' x 16'

Topline Telescopic I-Beam Dump Gooseneck
17600 lbs
Model #
HBTL8316-GN-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6035 lbs

7' x 21'

Topline Telescopic I-Beam Dump
22000 lbs
Model #
HBTL8314-BP-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

7' x 23'

Topline Telescopic I-Beam Dump
22000 lbs
Model #
HBTL8316-BP-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
