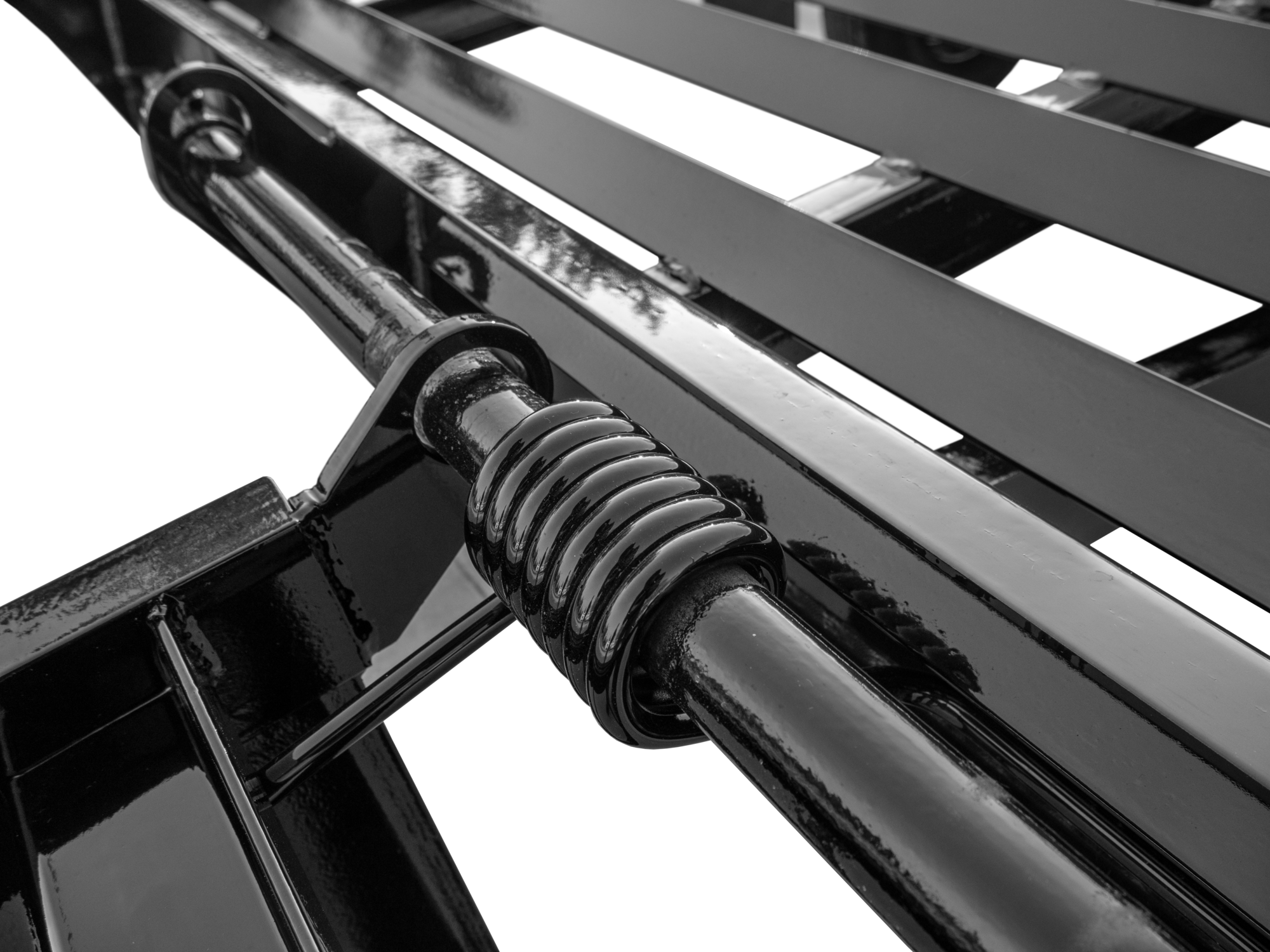

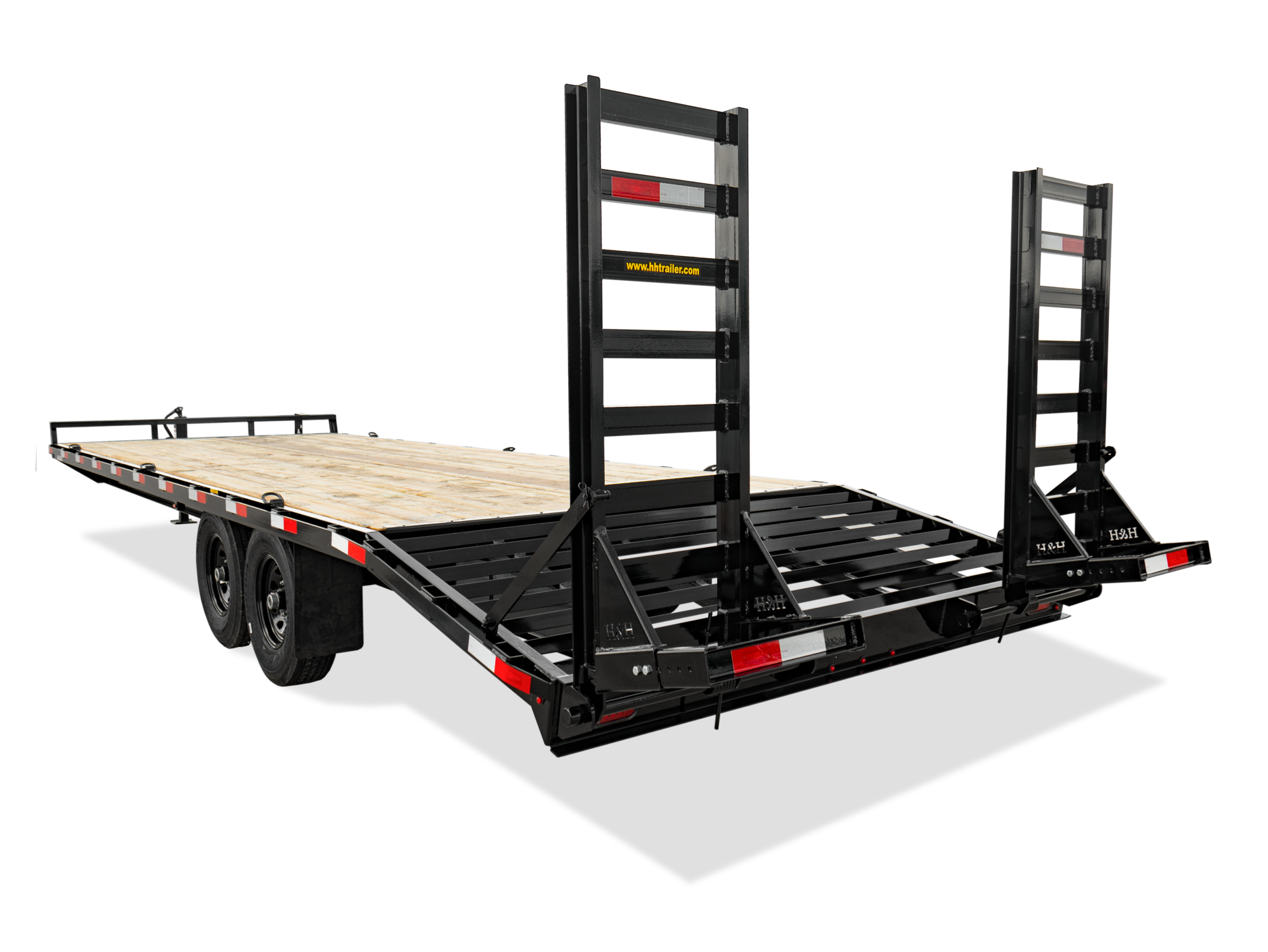

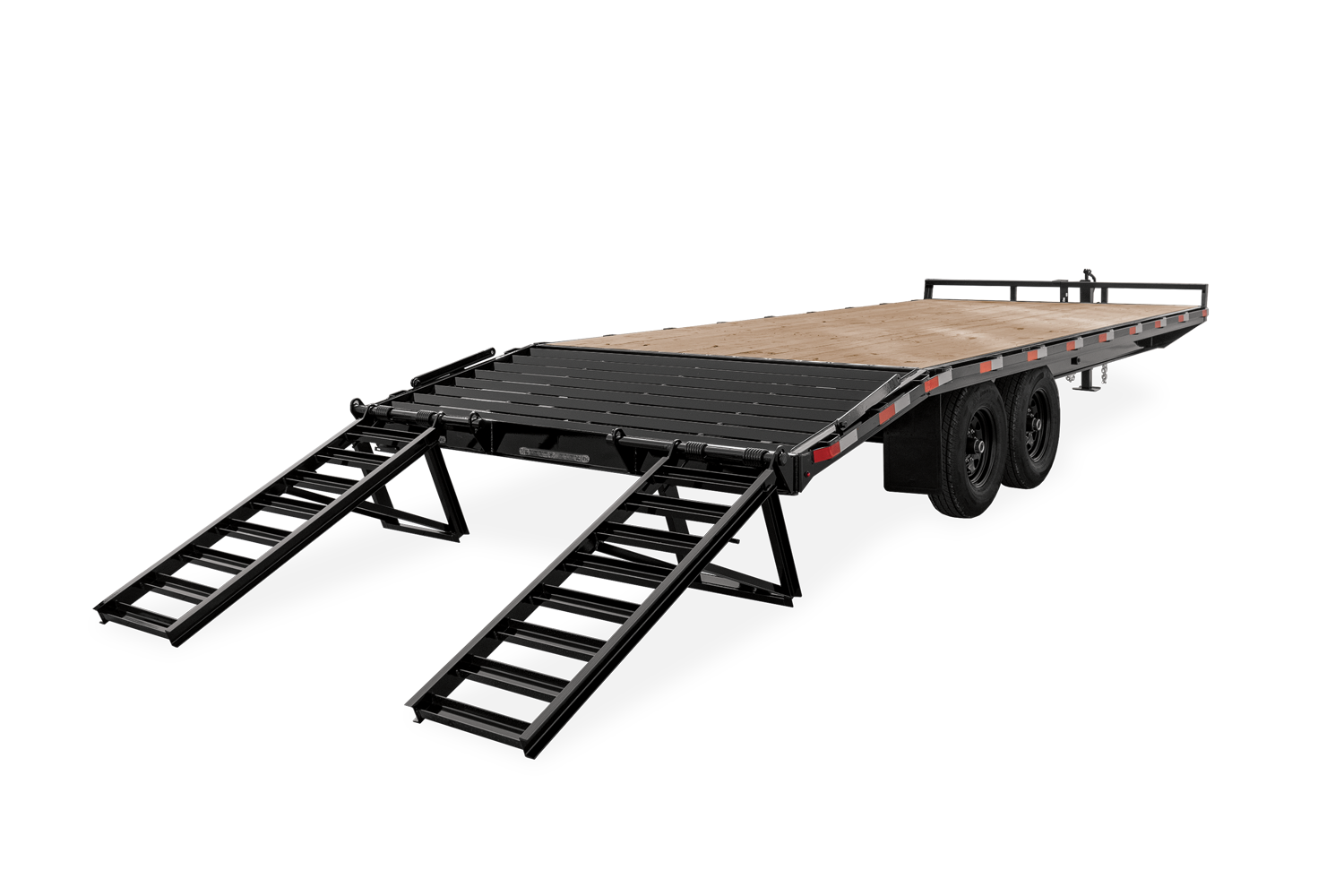

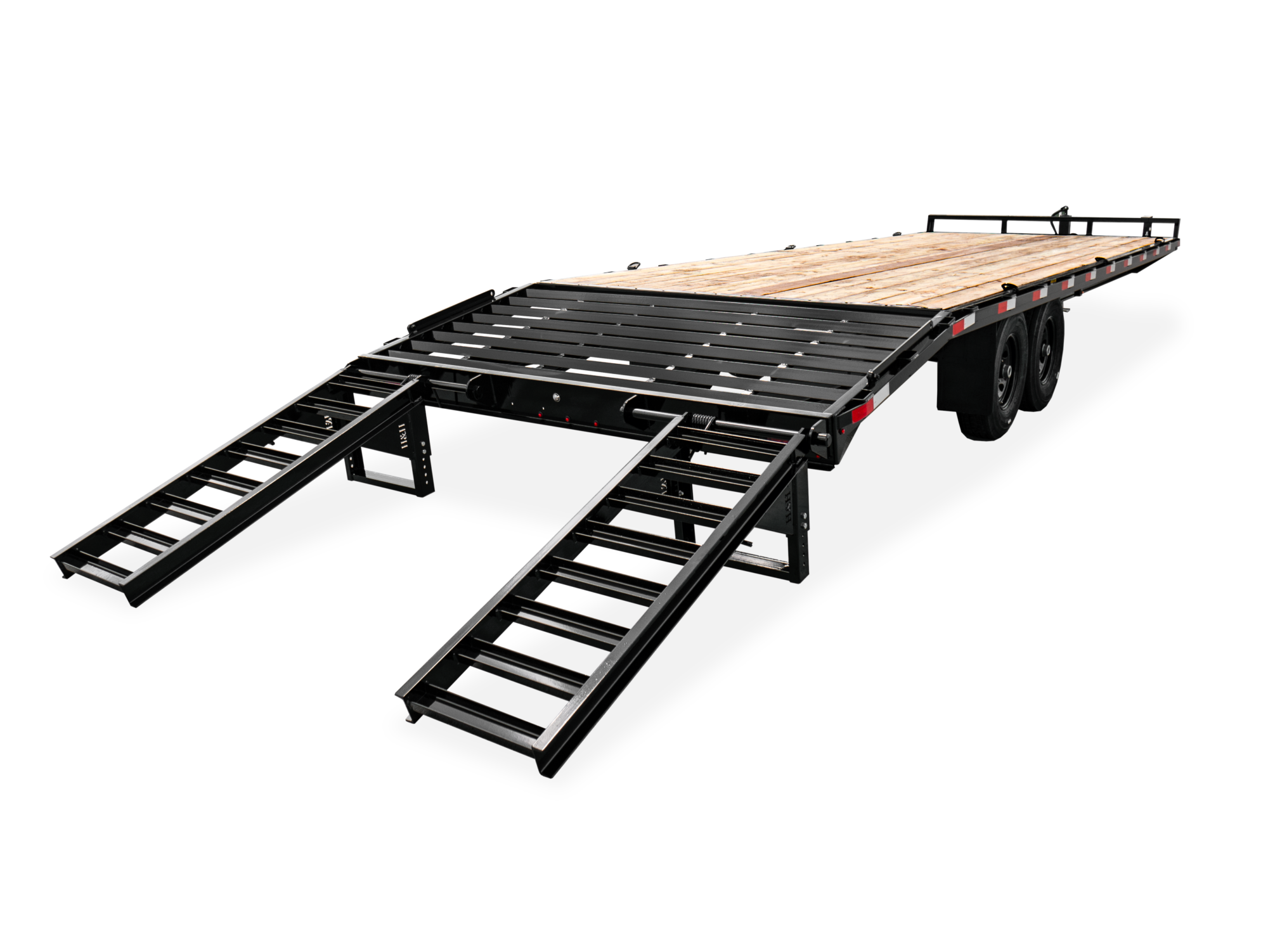

Self-Cleaning Dovetail and Stand-Up Ramps – Fast, Hassle-Free Loading
The angled dovetail and spring-assist ramps make loading equipment easy and efficient—no shoveling required.

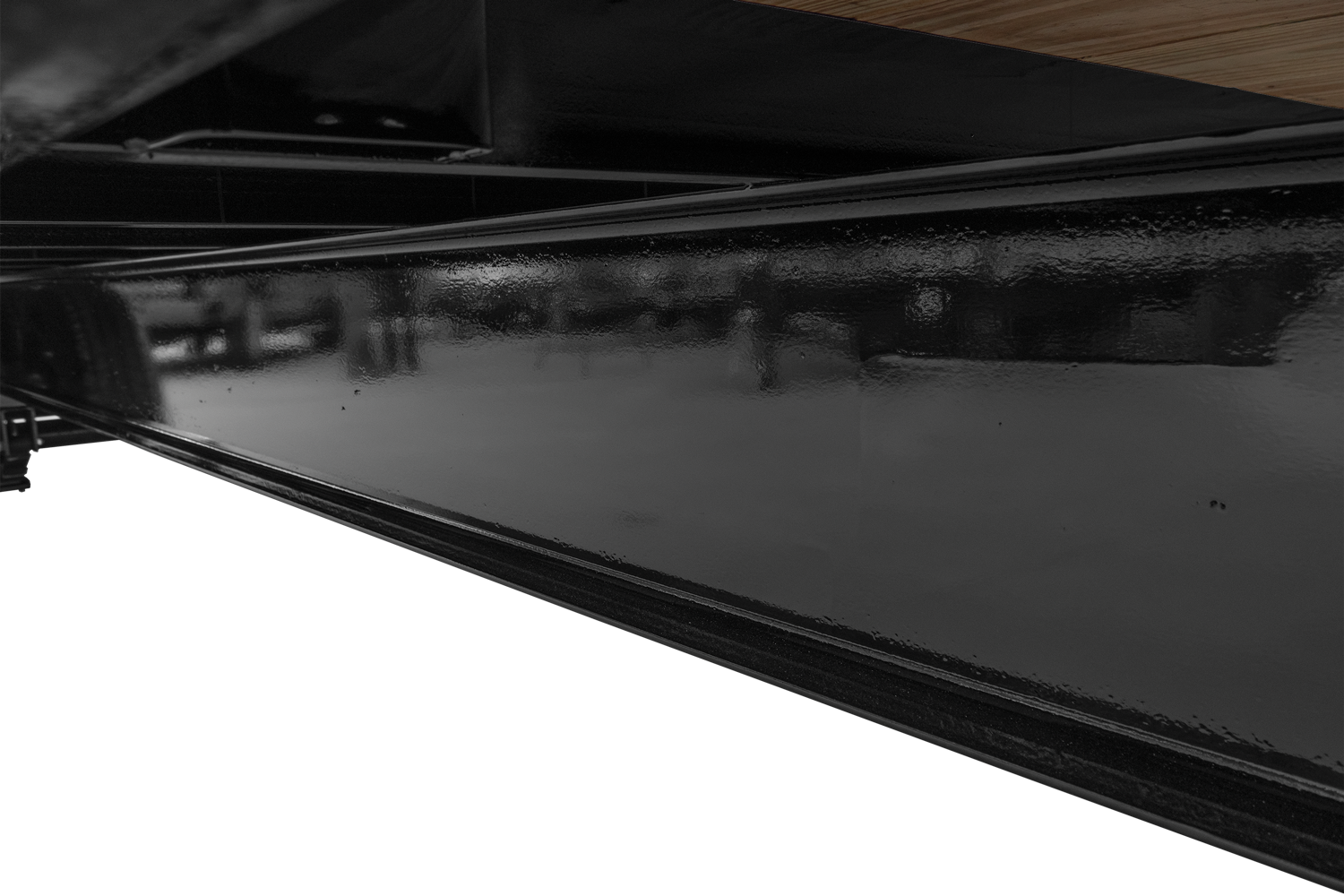

10" I-Beam Frame – Built to Withstand the Load
The strong, structural I-Beam frame delivers unmatched durability and hauling strength.
Custom Tube Bulkhead – Cargo Control Up Front
A reinforced tube bulkhead helps secure loads and reduces shifting during transport.

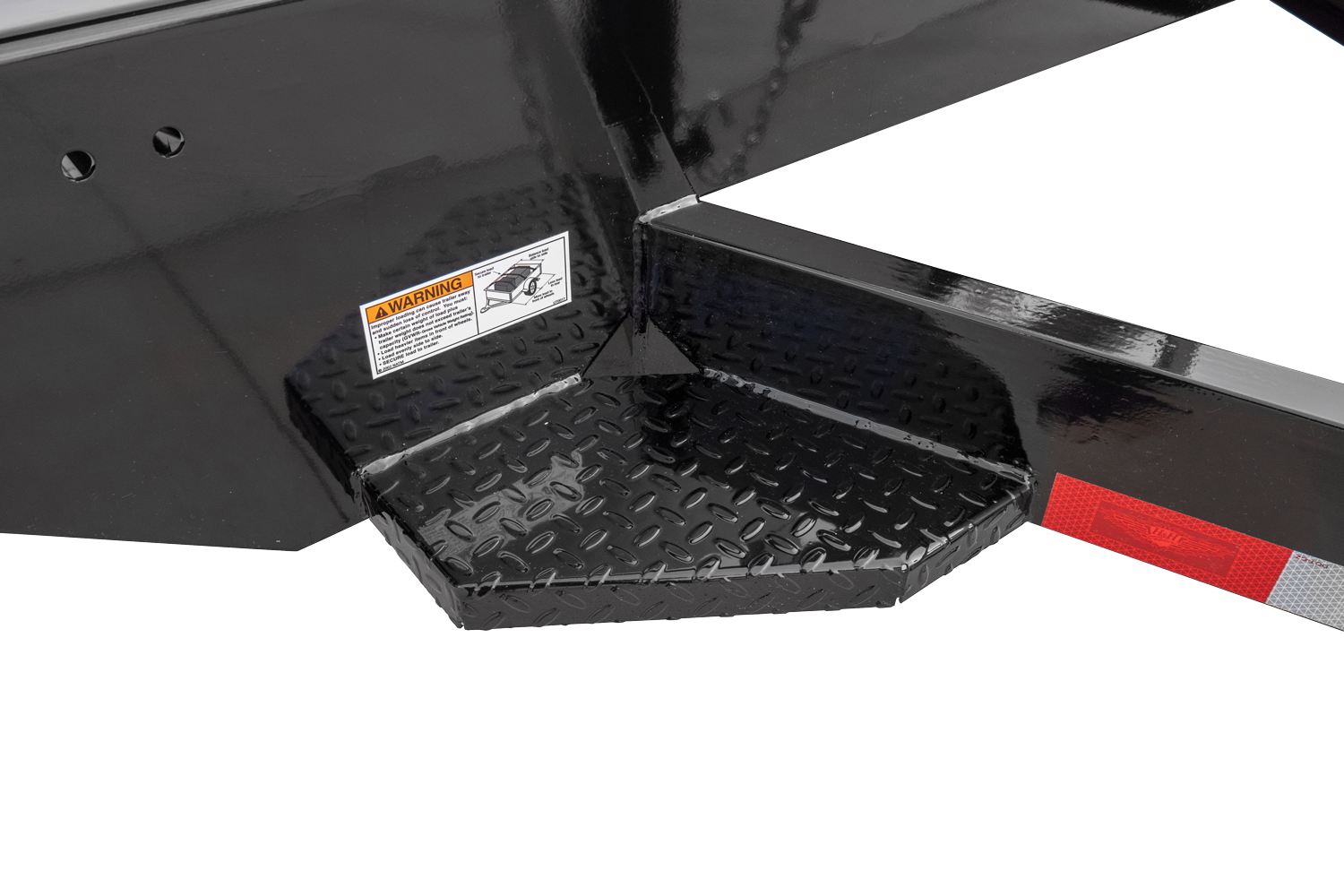

Integrated Side Steps – Easy On, Easy Off
Get quick access to the deck from either side with stable, welded side steps.

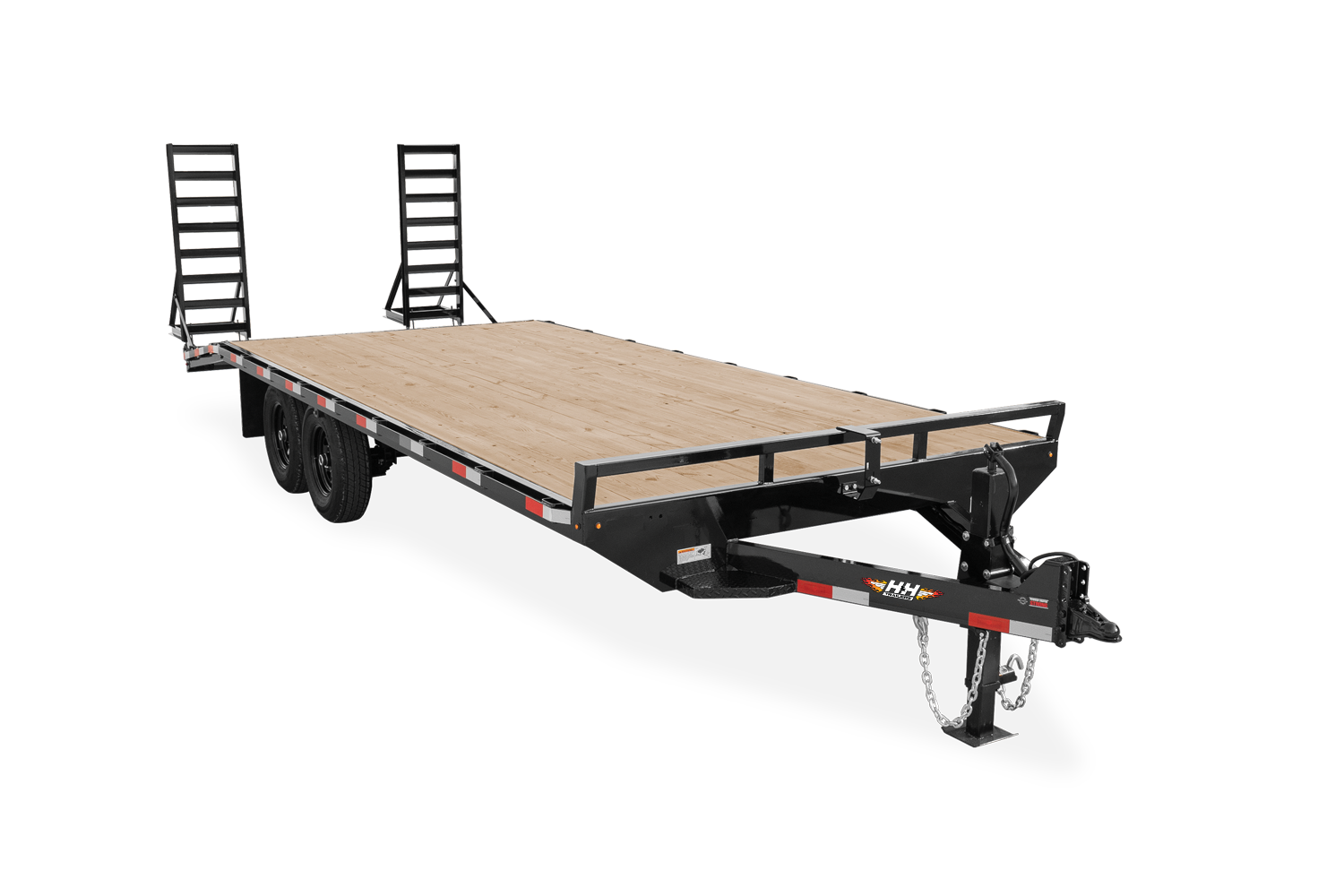

Standard Duty Dovetail Deckover Trailer
The angled dovetail and spring-assist ramps make loading equipment easy and efficient—no shoveling required.
The strong, structural I-Beam frame delivers unmatched durability and hauling strength.
A reinforced tube bulkhead helps secure loads and reduces shifting during transport.
Get quick access to the deck from either side with stable, welded side steps.
—
Standard Colors
Optional Colors
Colors may vary slightly.
Contact your local dealer for color samples.
The Standard Duty Dovetail Deckover Trailer from H&H is purpose-built for efficient loading and unloading of equipment with wheels or low ground clearance. Designed with working professionals in mind, this flatbed trailer adds functionality to the rugged strength of a deck over frame. Whether you're moving skid steers, garden tractors, or other compact machines, the dovetail makes the process safer and faster without sacrificing deck space.
These dovetail-equipped models come in a range of lengths from 18+4 to 24+4 and GVWR ratings from 10K to 14K to handle various job site and transport demands. Standard configurations offer a balance of towing stability and load capacity, with plenty of options to upgrade. Each model is engineered for consistent handling and durability, no matter the road or terrain.
Every dovetail version features a 10" I-Beam frame, a heavy-duty front bulkhead, and convenient integrated side steps. The rear of the trailer includes a sloped, self-cleaning dovetail that prevents buildup of mud and debris. Stand-up ramps with spring assist allow for quick deployment and secure upright travel. The treated wood deck and LED lighting system are built to handle tough jobs and long hauls with confidence.
Customize your deckover trailer with options such as a gooseneck hitch, additional tie-down points, upgraded axles, or a tongue toolbox. You can also enhance loading capabilities with wider ramps, hydraulic ramp upgrades, or alternate ramp surfaces for better traction. Every detail is designed to adapt the trailer to your specific equipment and workflow.
Model # | H10214+4HDL-100 |
GVWR (lbs) | 9900 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 3100 lbs |
Model # | H10216+4HDL-140 |
GVWR (lbs) | 14000 lbs |
GAWR (lbs/axle) | 7000 lbs/axle |
Curb Weight | 3380 lbs |
Model # | H10216+4HDL-100 |
GVWR (lbs) | 9900 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 3230 lbs |
Model # | H10218+4HDL-140 |
GVWR (lbs) | 14000 lbs |
GAWR (lbs/axle) | 7000 lbs/axle |
Curb Weight | 3750 lbs |
Model # | H10218+4HDLGN-140 |
GVWR (lbs) | 14000 lbs |
GAWR (lbs/axle) | 7000 lbs/axle |
Curb Weight | 4310 lbs |
Model # | H10218+4HDL-100 |
GVWR (lbs) | 9900 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 3830 lbs |
Model # | H10220+4HDL-140 |
GVWR (lbs) | 14000 lbs |
GAWR (lbs/axle) | 7000 lbs/axle |
Curb Weight | 3870 lbs |
Model # | H10224+4HDL-140 |
GVWR (lbs) | 14000 lbs |
GAWR (lbs/axle) | 7000 lbs/axle |
Curb Weight | 4050 lbs |
Model # | H10220+4HDLGN-140 |
GVWR (lbs) | 14000 lbs |
GAWR (lbs/axle) | 7000 lbs/axle |
Curb Weight |
Model # | H10220+4HDL-100 |
GVWR (lbs) | 9900 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight |
Model # | H10222+4HDL-140 |
GVWR (lbs) | 14000 lbs |
GAWR (lbs/axle) | 7000 lbs/axle |
Curb Weight | 4410 lbs |
Model # | H10222+4HDL-100 |
GVWR (lbs) | 9900 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 4350 lbs |
Model # | H10224+4HDL-100 |
GVWR (lbs) | 9900 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 4150 lbs |
Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
