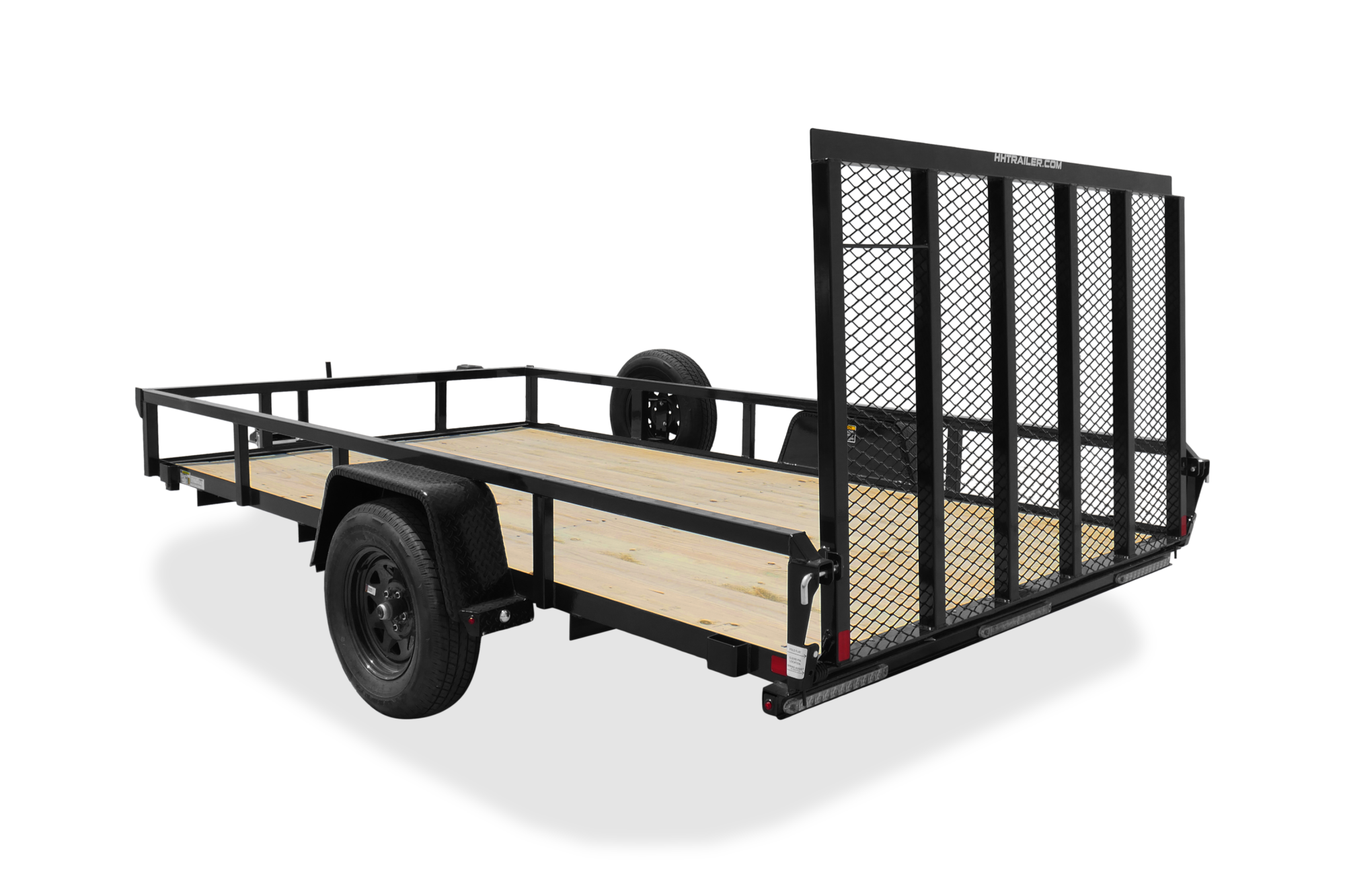

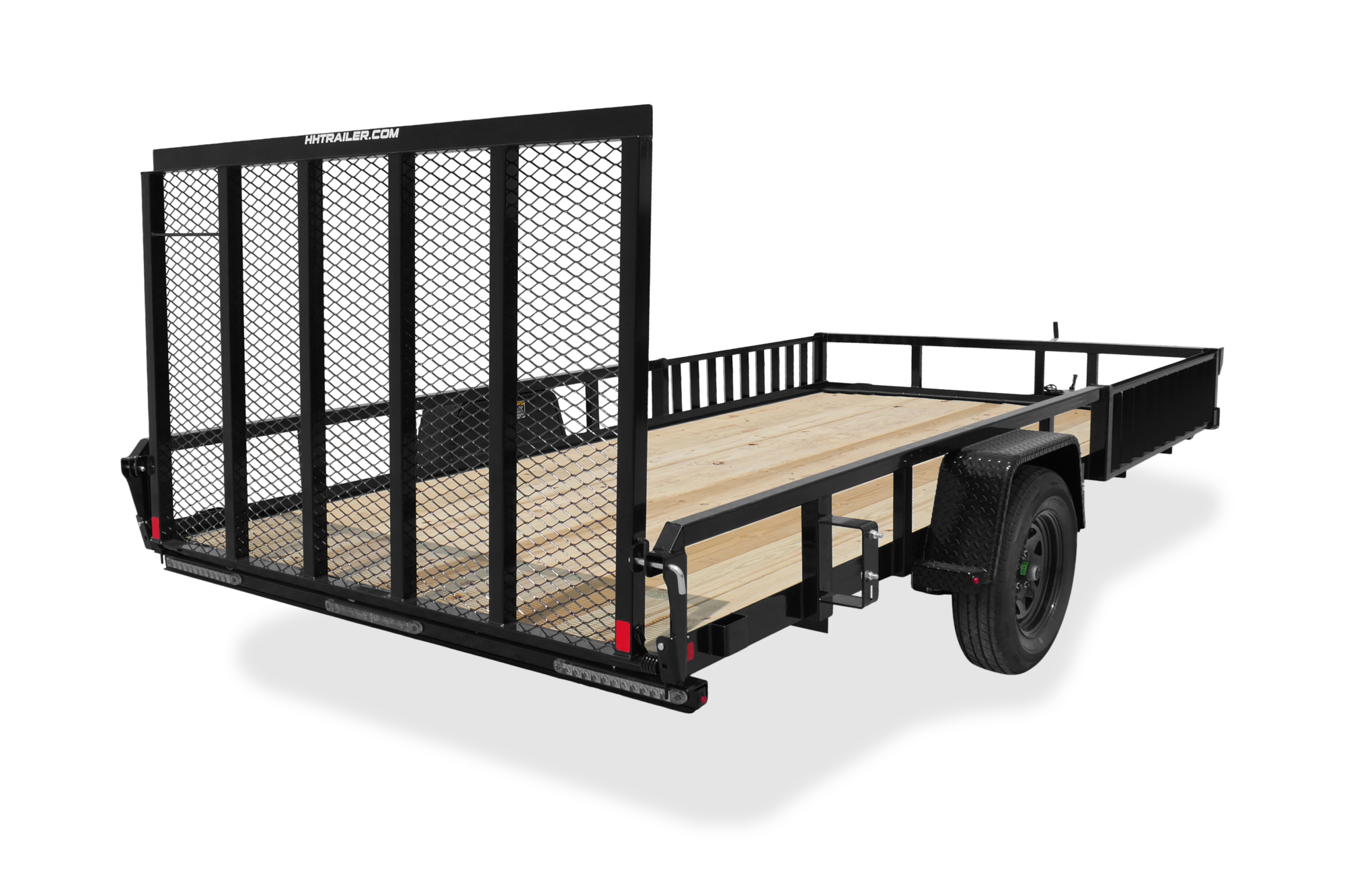

Fold-flat Rear Ramp Gate – Easy Loading and Space-Saving Design

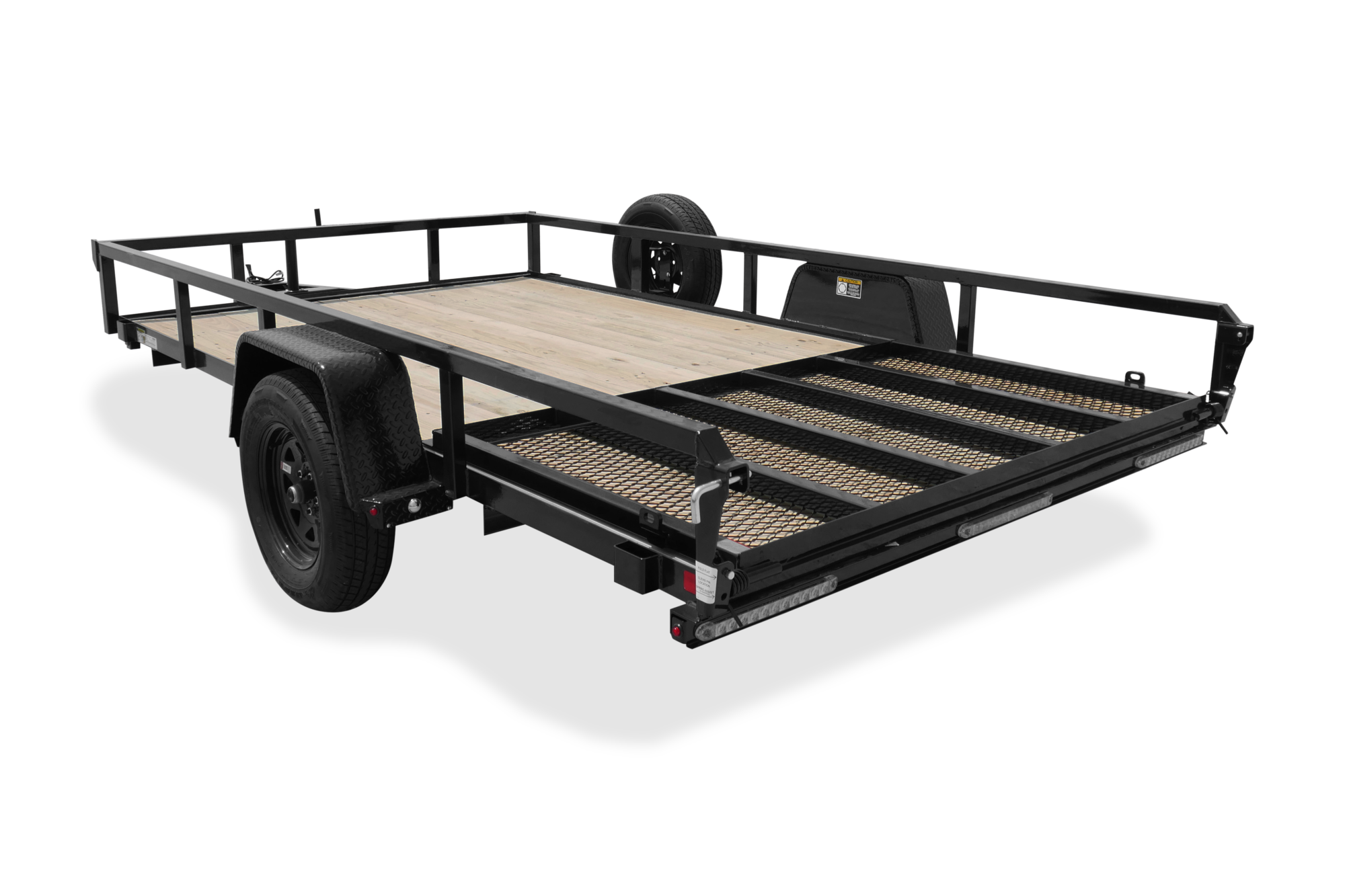

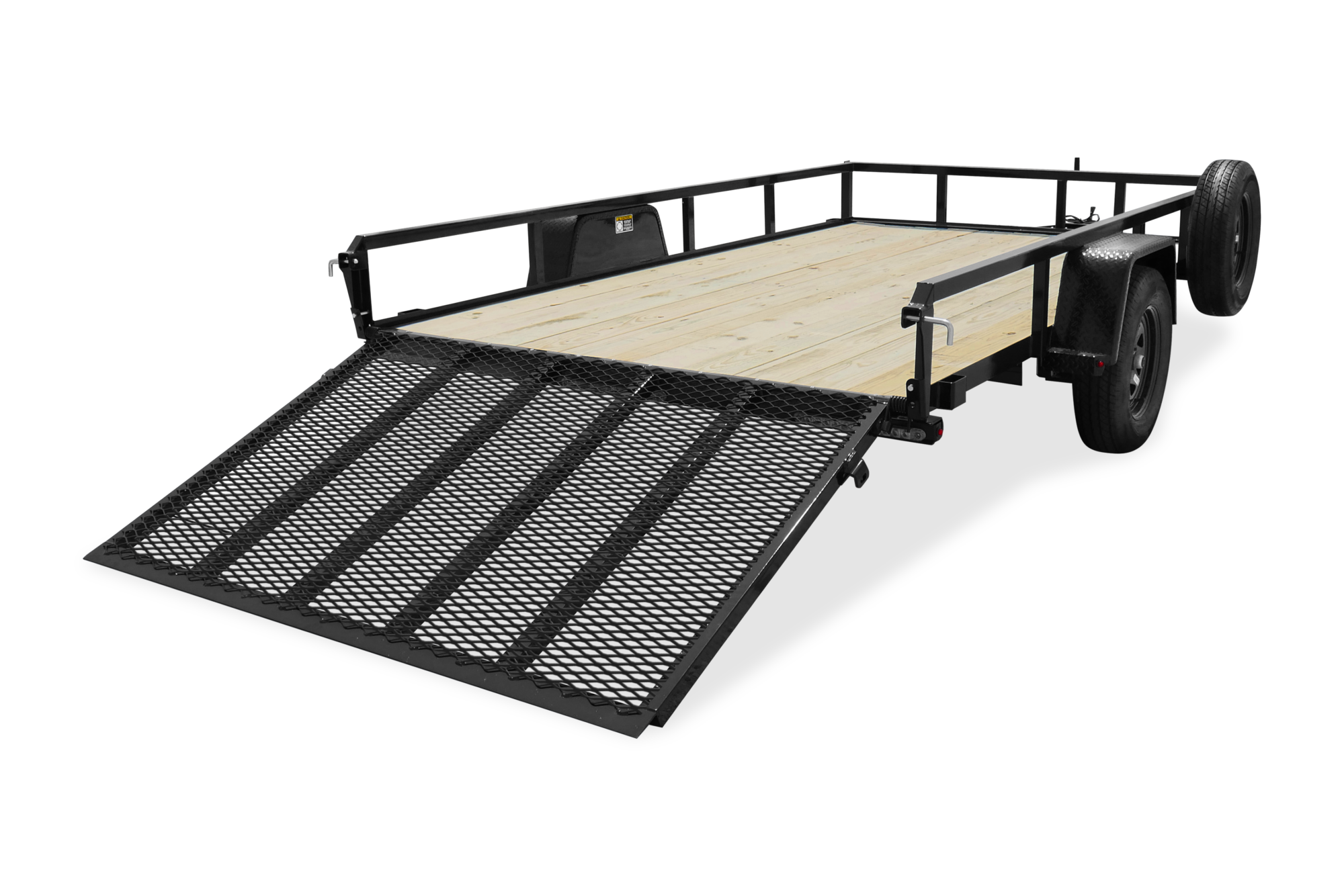

This full-width, spring-assisted ramp gate folds down for simple loading and unloading, then folds flat into the trailer bed for reduced wind drag during transport.
2"x2" Tube Top Uprights and Top Rail – Unmatched Structural Support
The 2″x2″ tube top rail and tube uprights deliver exceptional structural strength and rigidity, ensuring a durable trailer built for long-term performance.
Spare Tire Carrier – Always Ready for the Unexpected
An integrated carrier keeps a spare tire within reach, so you’re prepared if a flat ever interrupts your haul.
Set-Back Tongue Jack – Easier Towing Setup
The offset tongue jack improves trailer stability and clearance when hitching, making it easier to hook up and go.
Rail Side Utility Trailer
This full-width, spring-assisted ramp gate folds down for simple loading and unloading, then folds flat into the trailer bed for reduced wind drag during transport.
The 2"x2" tube top rail and tube uprights deliver exceptional structural strength and rigidity, ensuring a durable trailer built for long-term performance.
An integrated carrier keeps a spare tire within reach, so you’re prepared if a flat ever interrupts your haul.
The offset tongue jack improves trailer stability and clearance when hitching, making it easier to hook up and go.

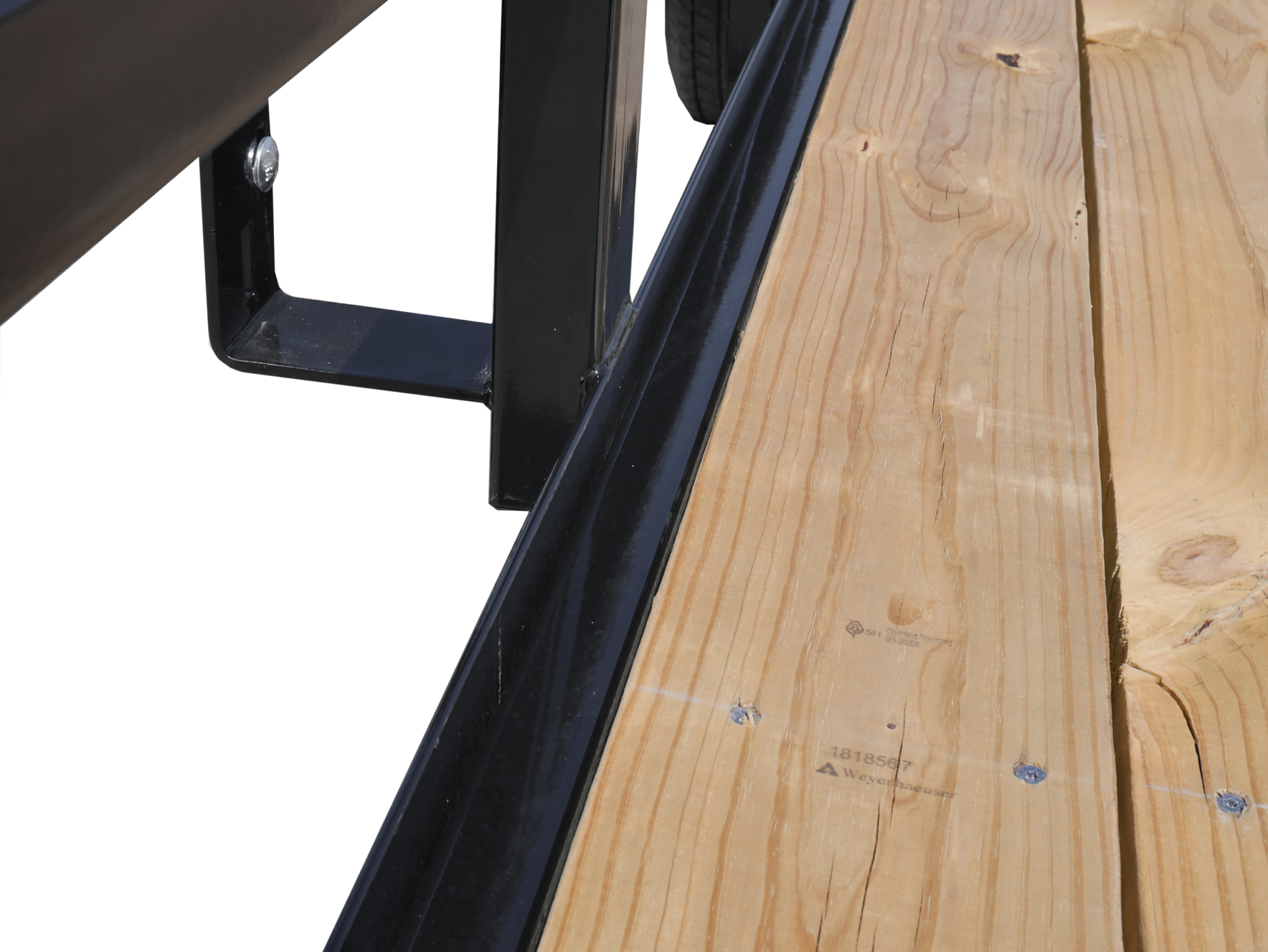

The sealed wiring harness is fully enclosed, protecting vital electrical components from moisture, dirt, and damage.
—
Standard Colors
Optional Colors
Colors may vary slightly.
Contact your local dealer for color samples.

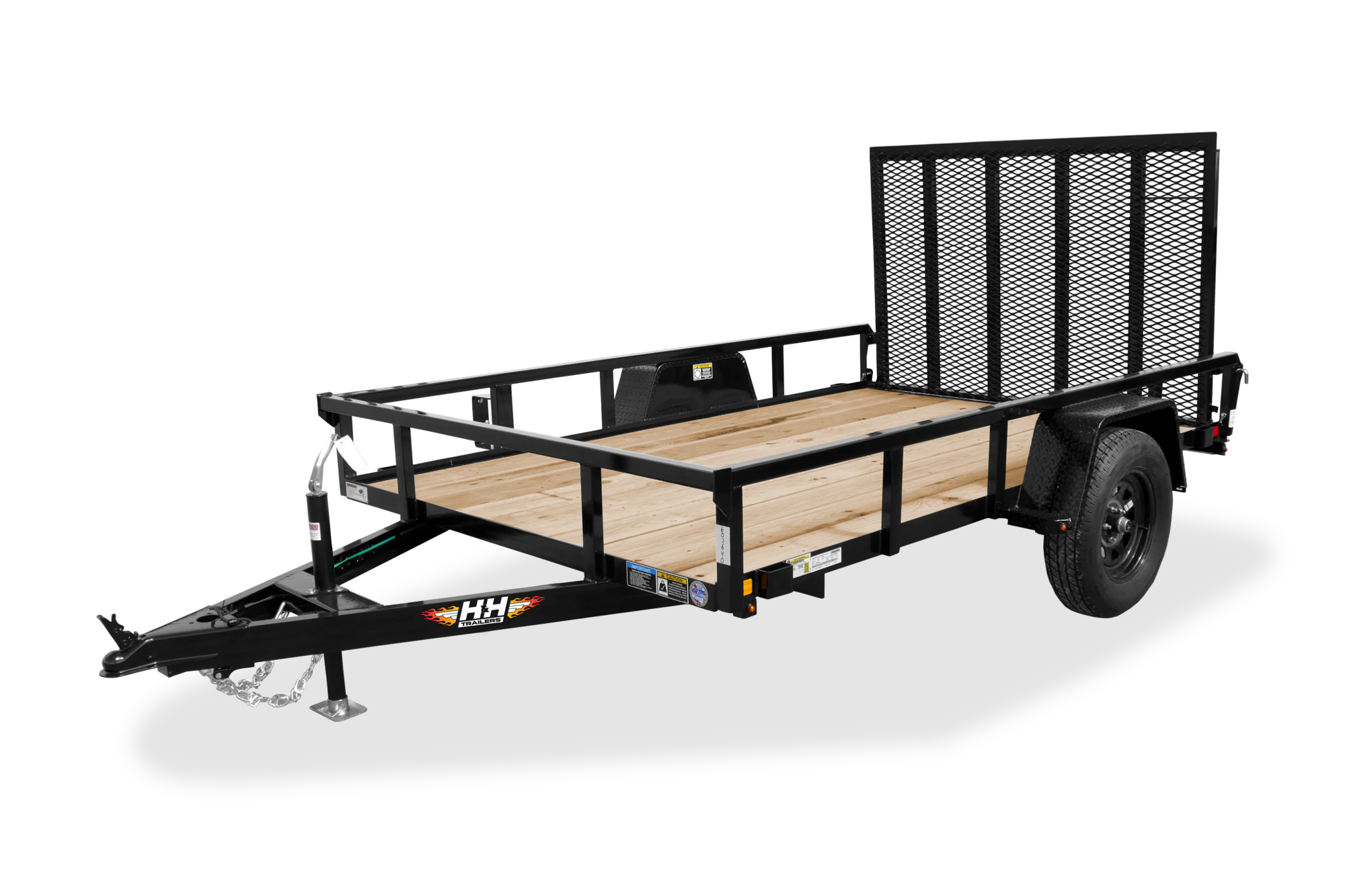

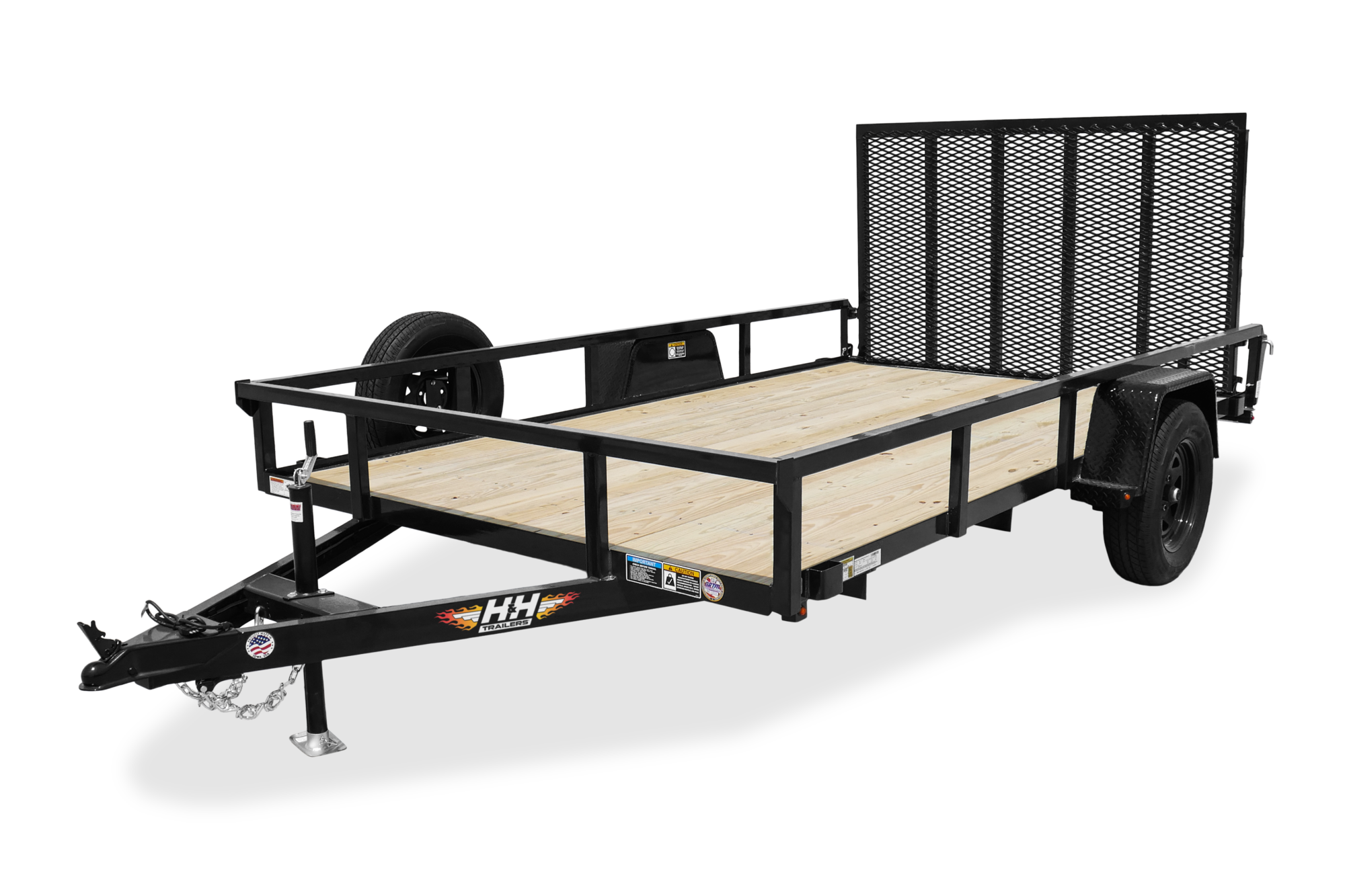

The H&H Rail Side Utility Trailer is a reliable, lightweight solution built for general-purpose hauling. Featuring a sturdy rail frame design, fold-flat ramp gate, and industrial-grade finish, it's a dependable option whether you're moving gear to a job site, hauling landscaping equipment, or loading up for the weekend.

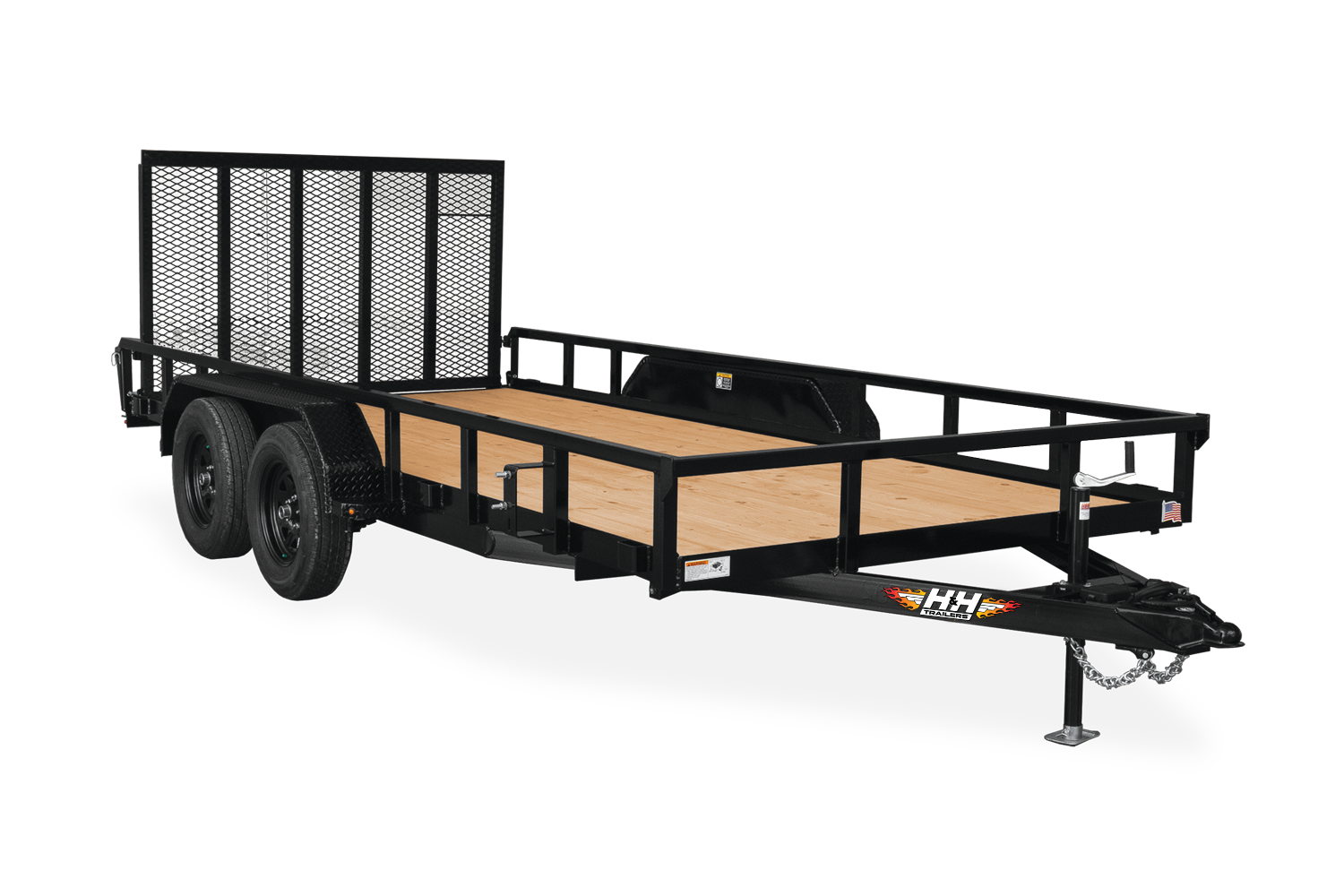

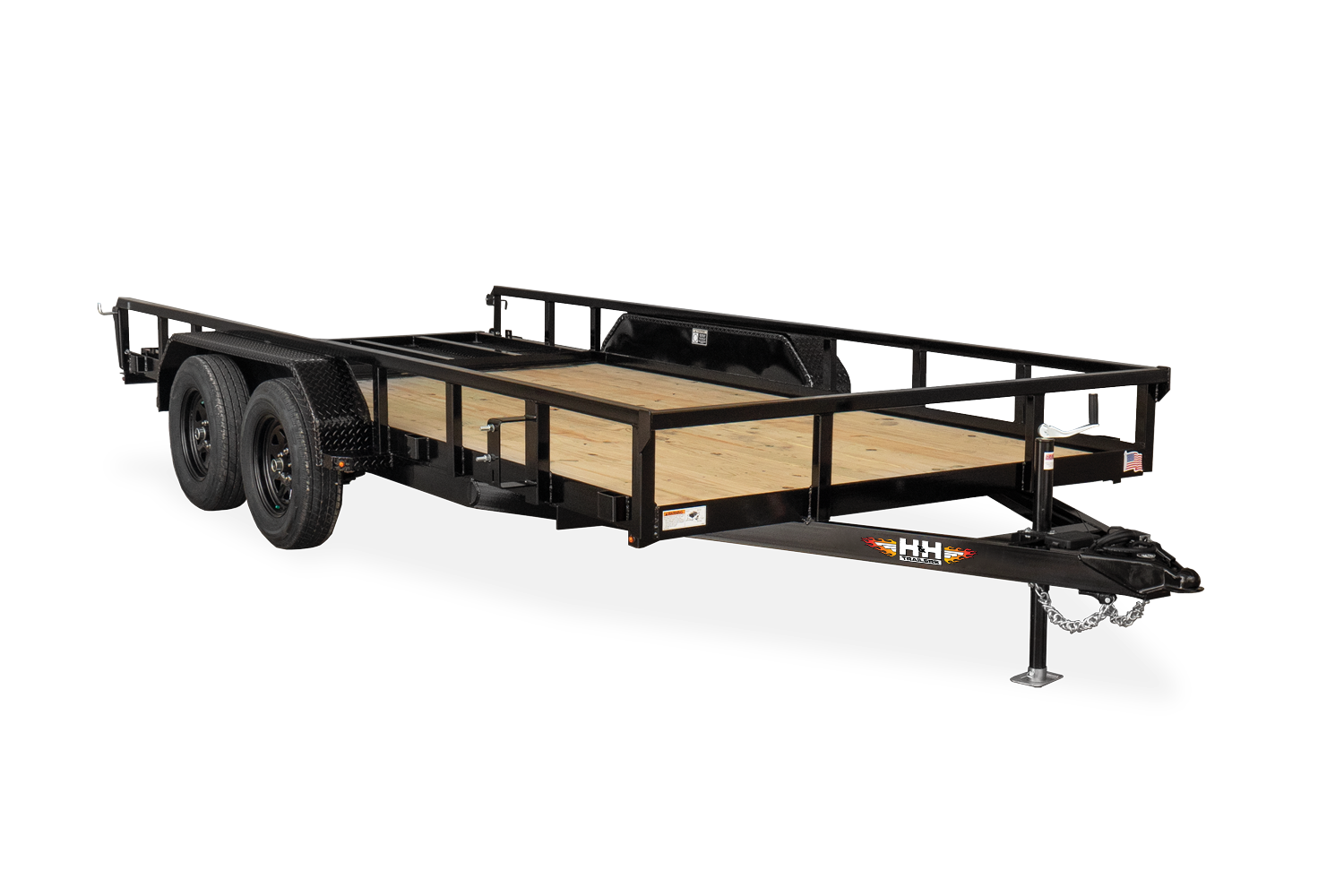

Single axle small utility trailers are available offering ease of maneuverability and efficient towing behind smaller tow vehicles. For heavier loads, tandem axles provide enhanced payload capacity and stability.
Every Rail Side Utility Trailer includes treated wood flooring, an industrial polymer finish, tie-down points, LED lighting, easy-lube hubs, and safety chains. The fold-flat ramp gate and set-back tongue jack come standard, along with an integrated spare tire mount for added preparedness.
Customize your utility trailer with a range of add-ons like aluminum wheels, toolbox upgrades, adjustable coupler, and brake kits (on single axle models). Choose from a variety of sizes and axle capacities to best match your hauling needs and vehicle capability.
Model # | H6008RS-030 |
GVWR (lbs) | 2990 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 750 lbs |
Model # | H6008RS-050 |
GVWR (lbs) | 5000 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 875 lbs |
Model # | H6010RS-030 |
GVWR (lbs) | 2990 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 810 lbs |
Model # | H6010RS-050 |
GVWR (lbs) | 5000 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 935 lbs |
Model # | H6610RS-030 |
GVWR (lbs) | 2990 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 890 lbs |
Model # | H6610RS-050 |
GVWR (lbs) | 5000 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 1005 lbs |
Model # | H6612RS-030 |
GVWR (lbs) | 2990 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 990 lbs |
Model # | H6612RS-050 |
GVWR (lbs) | 5000 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 1115 lbs |
Model # | H7610RS-030 |
GVWR (lbs) | 2990 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 970 lbs |
Model # | H7610RS-050 |
GVWR (lbs) | 5000 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 1095 lbs |
Model # | H7612RS-030 |
GVWR (lbs) | 2990 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 1050 lbs |
Model # | H8212RS-030 |
GVWR (lbs) | 2990 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 1110 lbs |
Model # | H8212RS-050 |
GVWR (lbs) | 5000 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 1225 lbs |
Model # | H7612RS-050 |
GVWR (lbs) | 5000 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 1410 lbs |
Model # | H8212TRS-070 |
GVWR (lbs) | 7000 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 1520 lbs |
Model # | H8214RS-030 |
GVWR (lbs) | 2990 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 1210 lbs |
Model # | H8214RS-050 |
GVWR (lbs) | 5000 lbs |
GAWR (lbs/axle) | 5200 lbs/axle |
Curb Weight | 1350 lbs |
Model # | H8214TRS-070 |
GVWR (lbs) | 7000 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 1610 lbs |
Model # | H8216TRS-070 |
GVWR (lbs) | 7000 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 1790 lbs |
Model # | H8218TRS-070 |
GVWR (lbs) | 7000 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 1890 lbs |
Model # | H8220TRS-070 |
GVWR (lbs) | 7000 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 1970 lbs |
Model # | H8222TRS-070 |
GVWR (lbs) | 7000 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 2580 lbs |
Model # | H8224TRS-070 |
GVWR (lbs) | 7000 lbs |
GAWR (lbs/axle) | 3500 lbs/axle |
Curb Weight | 2700 lbs |
Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
