Low Profile Dual Tandem Deckover Trailer

Bed Width: 102′
Bed Length: 20′-40′
GVWR: 22,500-32,000 lbs
GAWR: 20-15,000 lbs/axle
HH Low Profile Deck Over Trailer Front Black Wheels

Low Profile, Pierced Beam Frame – Optimized Load Stability

The pierced beam design lowers the deck height for easier equipment loading and improved towing stability.

12" I-Beam Frame and Tongue – Heavy-Duty Strength

A massive 12″ I-Beam frame and tongue create a robust foundation for demanding equipment trailer jobs.

11.5K Capacity, Deluxe Flip-over, Full-Width Ramps – Effortless Loading

Flip-over, full-width ramps with a combined rating of 11,500 lbs. offer easy loading for large equipment, reducing time and effort.

5' Self-Cleaning Dovetail – Smooth Loading and Unloading

The 5′ dovetail with a self-cleaning design ensures smooth transitions while preventing debris buildup.

Low Profile Dual Tandem Deckover Trailer

Engineered for maximum strength and low deck height, the Low Profile Dual Tandem Deckover Trailer is a heavy-duty solution for hauling equipment and oversized loads. Built to last with a 12″ I-Beam frame, this gooseneck equipment trailer delivers rugged performance you can rely on.

Key Benefits

Low Profile, Pierced Beam Frame – Optimized Load Stability

The pierced beam design lowers the deck height for easier equipment loading and improved towing stability.

12" I-Beam Frame and Tongue – Heavy-Duty Strength

A massive 12" I-Beam frame and tongue create a robust foundation for demanding equipment trailer jobs.

11.5K Capacity, Deluxe Flip-over, Full-Width Ramps – Effortless Loading

Flip-over, full-width ramps with a combined rating of 11,500 lbs. offer easy loading for large equipment, reducing time and effort.

5' Self-Cleaning Dovetail – Smooth Loading and Unloading

The 5' dovetail with a self-cleaning design ensures smooth transitions while preventing debris buildup.

Explore This Trailer

HH Low Profile Deck Over Trailer Front Black Wheels

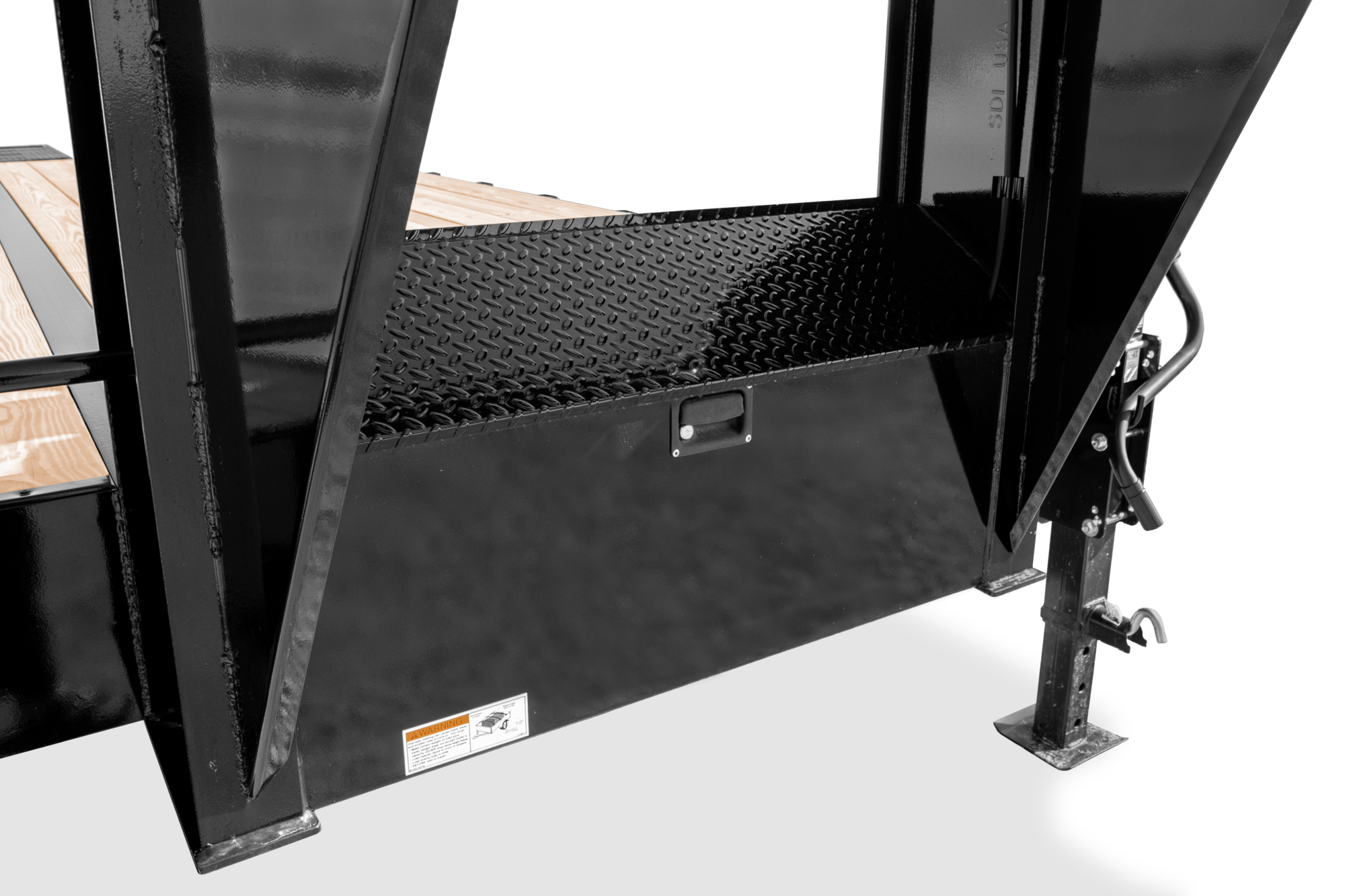

HH Low Profile Deck Over Trailer Toolbox

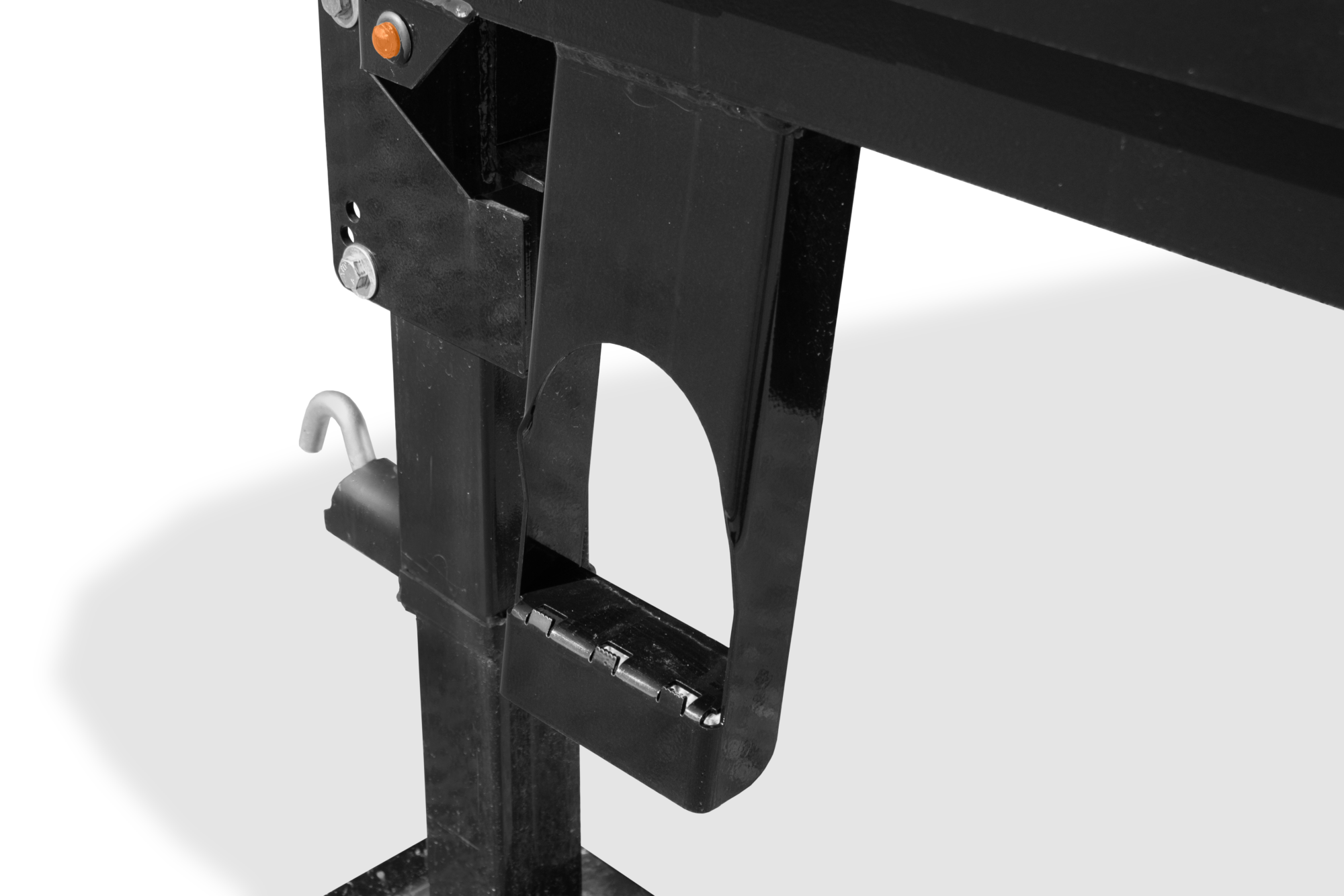

HH Low Profile Deck Over Trailer Step

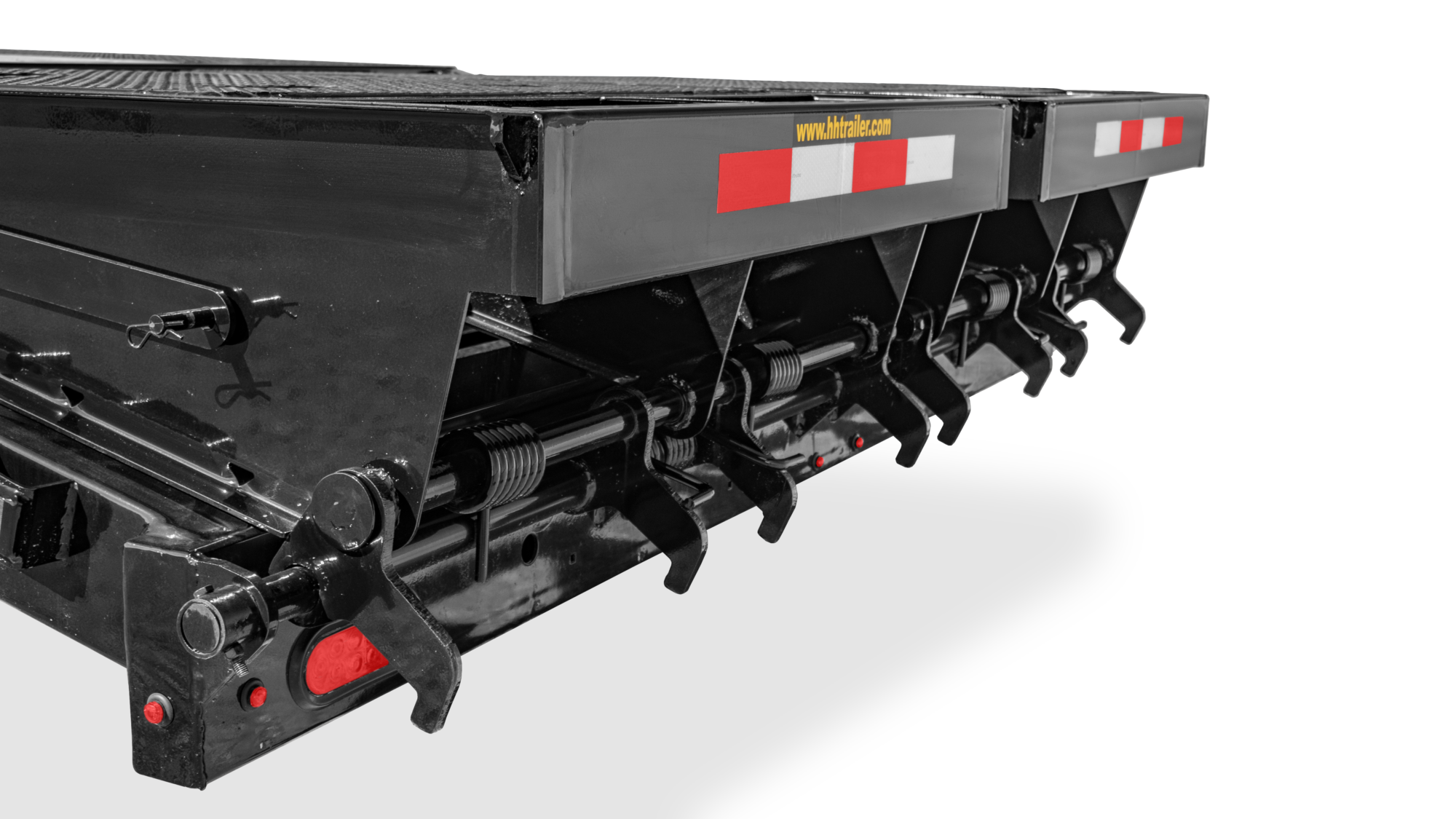

HH Low Profile Deck Over Trailer Rear Ramps

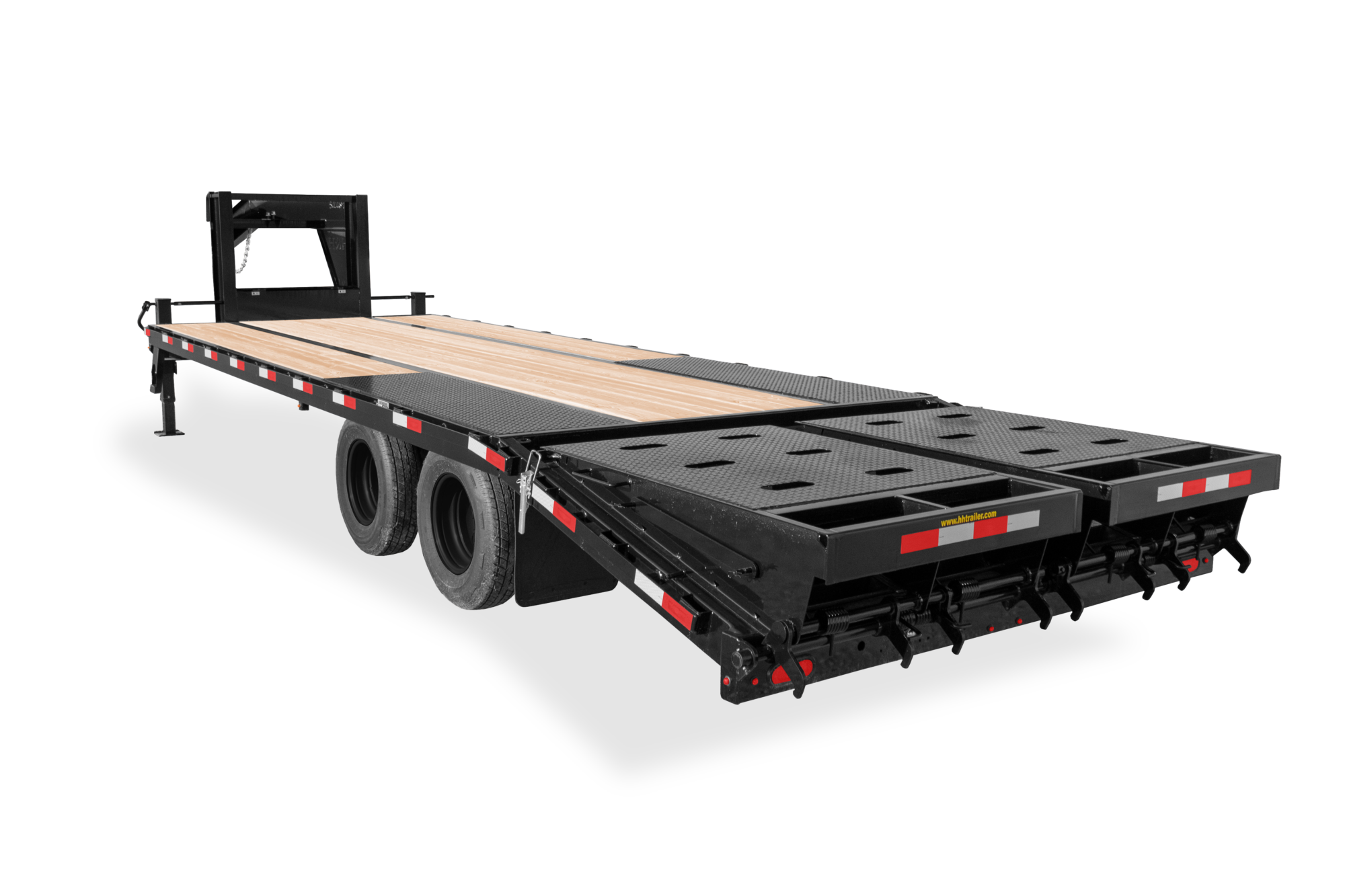

HH Low Profile Deck Over Trailer Rear Black Wheels

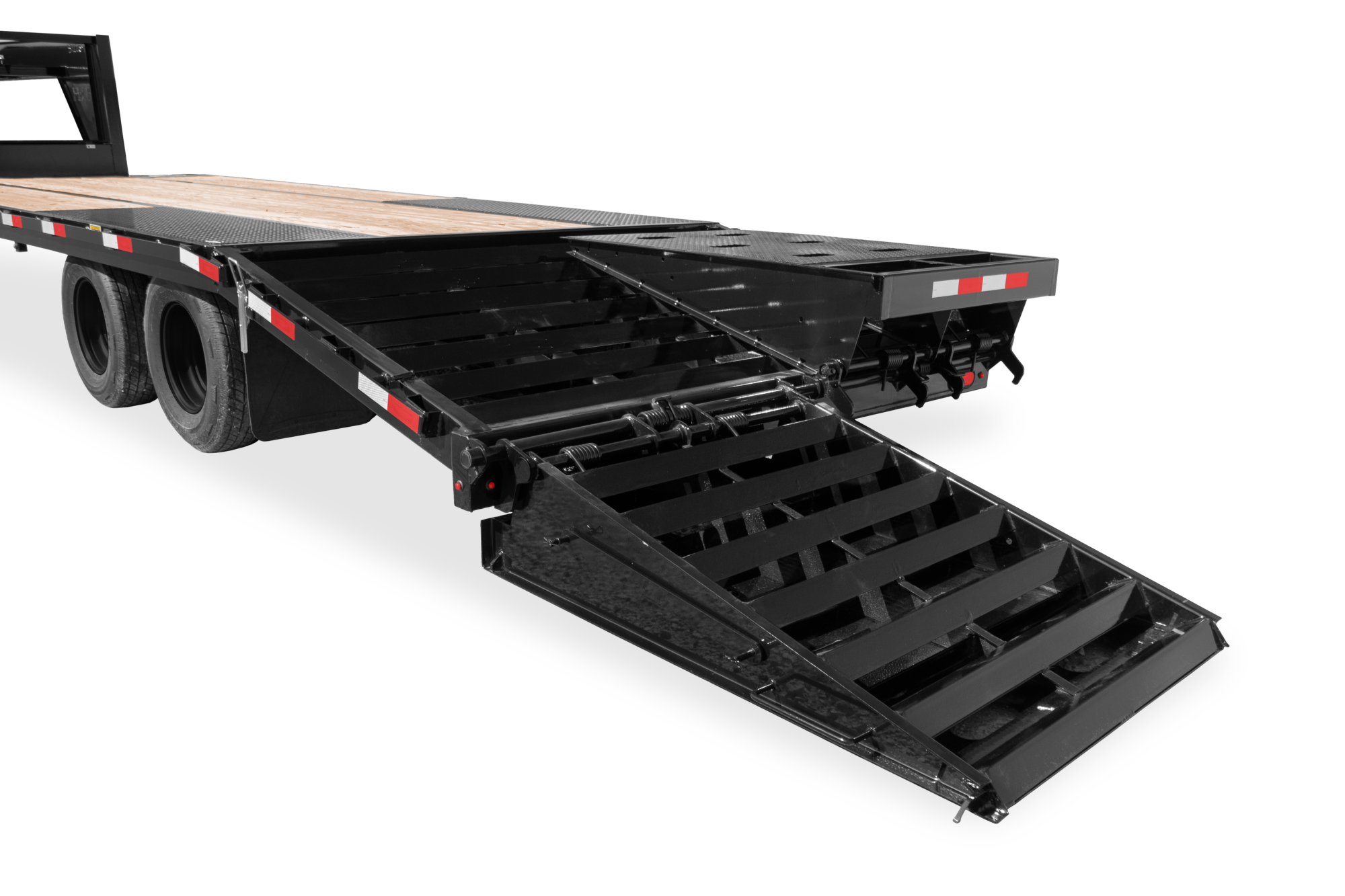

HH Low Profile Deck Over Trailer Ramp Black Wheels

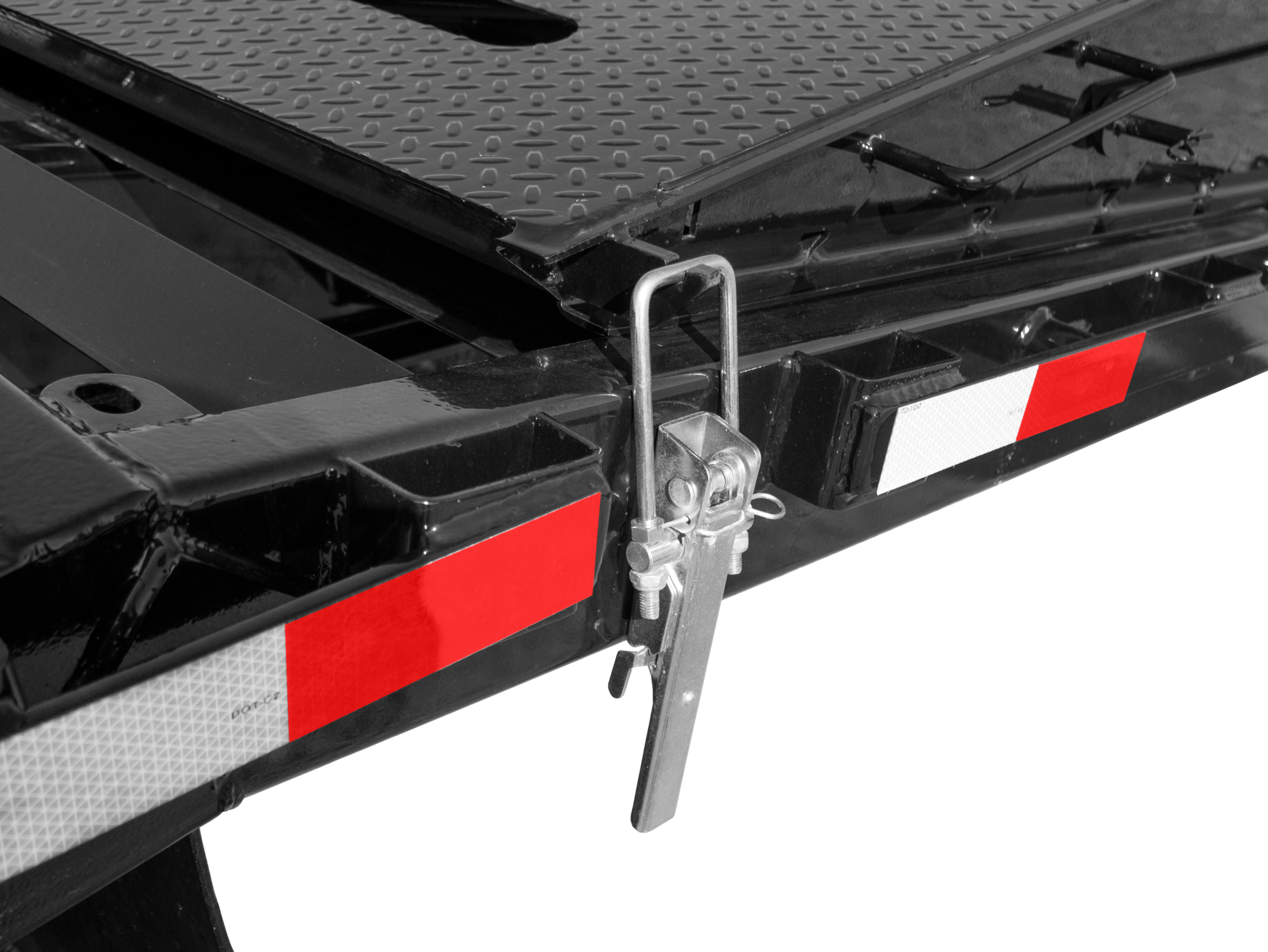

HH Low Profile Deck Over Trailer Latch

Model Color Options:

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose an H&H Low Profile Dual Tandem Deckover Trailer?

Overview

The Low Profile Dual Tandem Deckover Trailer is designed to tackle the toughest jobs. Combining a low deck height with a rugged frame, it offers maximum durability and functionality for professional-grade hauling. Whether you're moving construction equipment, heavy machinery, or oversized loads, this deck over trailer provides the confidence and reliability you need.

Available Models

Offered in multiple deck lengths and GVWR options, this low profile gooseneck trailer is available with customization choices to fit your specific hauling requirements. Models come standard with dual tandem axles for superior weight distribution and handling, making them ideal equipment trailers for large loads.

Standard Features

Built on a 12" pierced beam I-Beam frame and tongue, the Low Profile Dual Tandem Deckover Trailer includes standard features like full-width deluxe flip-over ramps, a 5' self-cleaning dovetail, and an industrial-grade treated wood deck. The torque tube system and heavy-duty suspension provide smooth transport. Additional details like stake pockets, rub rails, and integrated tie-down points make securing your load easy and secure.

Options

Upgrade your trailer with premium options including hydraulic jacks, winch systems, additional tie-downs, gooseneck height increases, and upgraded flooring material. Whether you need a specialized flatbed trailer for heavy equipment or a versatile platform for oversized loads, H&H offers flexible options to match your needs.

Models

8' x 20'

Steel BP Deckover 20K
22500 lbs
Model #
H20L-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 20'

Steel GN Deckover 20K
22500 lbs
Model #
H20L-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
4305 lbs

8' x 20'

Steel BP Deckover 24K
25900 lbs
Model #
H20L-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

8' x 20'

Steel GN Deckover 24K
25900 lbs
Model #
H20L-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

8' x 25'

Steel BP Deckover 20K
22500 lbs
Model #
H25L-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 25'

Steel GN Deckover 20K
22500 lbs
Model #
H25L-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6230 lbs

8' x 25'

Steel GN Deckover 21K
23100 lbs
Model #
H25L3-GN-231
GVWR (lbs)
23100 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

8' x 25'

Steel BP Deckover 24K
25900 lbs
Model #
H25L-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

8' x 25'

Steel GN Deckover 24K
25900 lbs
Model #
H25L-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6315 lbs

8' x 25'

Steel GN Deckover 30K
30000 lbs
Model #
H20L3-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 25'

Steel BP Deckover 30K
32000 lbs
Model #
H25L-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

8' x 26'

Steel BP Deckover 30K
32000 lbs
Model #
H25L3-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6130 lbs

8' x 28'

Steel GN Deckover 30K
30000 lbs
Model #
H28L-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

8' x 30'

Steel BP Deckover 20K
22500 lbs
Model #
H30L-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 30'

Steel GN Deckover 20K
22500 lbs
Model #
H30L-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 30'

Steel GN Deckover 21K
23100 lbs
Model #
H30L3-GN-231
GVWR (lbs)
23100 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

8' x 30'

Steel BP Deckover 24K
25900 lbs
Model #
H30L-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

8' x 30'

Steel GN Deckover 24K
25900 lbs
Model #
H30L-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6830 lbs

8' x 30'

Steel GN Deckover 30K
30000 lbs
Model #
H30L-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

8' x 30'

Steel BP Deckover 30K
32000 lbs
Model #
H30L3-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 30'

Steel BP Deckover 30K
32000 lbs
Model #
H30L-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

8' x 35'

Steel BP Deckover 20K
22500 lbs
Model #
H35L-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 35'

Steel GN Deckover 20K
22500 lbs
Model #
H35L-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 35'

Steel GN Deckover 21K
23100 lbs
Model #
H35L3-GN-231
GVWR (lbs)
23100 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

8' x 35'

Steel BP Deckover 24K
25900 lbs
Model #
H35L-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

8' x 35'

Steel GN Deckover 24K
25900 lbs
Model #
H35L-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8050 lbs

8' x 35'

Steel GN Deckover 30K
30000 lbs
Model #
H35L3-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 40'

Steel BP Deckover 20K
22500 lbs
Model #
H40L-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 40'

Steel GN Deckover 20K
22500 lbs
Model #
H40L-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 40'

Steel GN Deckover 21K
23100 lbs
Model #
H40L3-GN-231
GVWR (lbs)
23100 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

8' x 40'

Steel BP Deckover 24K
25900 lbs
Model #
H40L-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

8' x 40'

Steel GN Deckover 24K
25900 lbs
Model #
H40L-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8050 lbs

8' x 40'

Steel GN Deckover 30K
30000 lbs
Model #
H40L3-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

8' x 40'

Steel GN Deckover 30K
30000 lbs
Model #
H40L-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

9' x 25'

Steel BP Deckover SDBC 20K
22500 lbs
Model #
H20+5SDBCL-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6350 lbs

9' x 25'

Steel GN Deckover SDBC 20K
22500 lbs
Model #
H20+5SDBCL-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6850 lbs

9' x 25'

Steel GN Deckover SDBC 21K
23100 lbs
Model #
H20+5SDBCL3-GN-231
GVWR (lbs)
23100 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
7165 lbs

9' x 25'

Steel BP Deckover SDBC 24K
25900 lbs
Model #
H20+5SDBCL-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6490 lbs

9' x 25'

Steel GN Deckover SDBC 24K
25900 lbs
Model #
H20+5SDBCL-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
7160 lbs

9' x 25'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H20+5SDBCL-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight
7900 lbs

9' x 25'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H20+5SDBCL3-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 25'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H20+5SDBCL3-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 25'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H20+5SDBCL-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

9' x 28'

Steel GN Deckover SDBC 20K
22500 lbs
Model #
H23+5SDBCL-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7000 lbs

9' x 30'

Steel BP Deckover SDBC 20K
22500 lbs
Model #
H25+5SDBCL-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7170 lbs

9' x 30'

Steel GN Deckover SDBC 20K
22500 lbs
Model #
H25+5SDBCL-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7400 lbs

9' x 30'

Steel GN Deckover SDBC 21K
23100 lbs
Model #
H25+5SDBCL3-GN-231
GVWR (lbs)
23100 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
7035 lbs

9' x 30'

Steel BP Deckover SDBC 24K
25900 lbs
Model #
H25+5SDBCL-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
7250 lbs

9' x 30'

Steel GN Deckover SDBC 24K
25900 lbs
Model #
H25+5SDBCL-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
7720 lbs

9' x 30'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H25+5SDBCL3-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
8410 lbs

9' x 30'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H25+5SDBCL-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight
8750 lbs

9' x 30'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H25+5SDBCL-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

9' x 30'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H25+5SDBCL3-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 32'

Steel GN Deckover SDBC 20K
22500 lbs
Model #
H27+5SDBCL-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7610 lbs

9' x 32'

Steel GN Deckover SDBC 24K
25900 lbs
Model #
H27+5SDBCL-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

9' x 33'

Steel GN Deckover SDBC 20K
22500 lbs
Model #
H28+5SDBCL-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7520 lbs

9' x 33'

Steel GN Deckover SDBC 24K
25900 lbs
Model #
H28+5SDBCL-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
7985 lbs

9' x 35'

Steel BP Deckover SDBC 20K
22500 lbs
Model #
H30+5SDBCL-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 35'

Steel GN Deckover SDBC 20K
22500 lbs
Model #
H30+5SDBCL-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7960 lbs

9' x 35'

Steel GN Deckover SDBC 21K
23100 lbs
Model #
H30+5SDBCL3-GN-231
GVWR (lbs)
23100 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

9' x 35'

Steel BP Deckover SDBC 24K
25900 lbs
Model #
H30+5SDBCL-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8120 lbs

9' x 35'

Steel GN Deckover SDBC 24K
25900 lbs
Model #
H30+5SDBCL-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8150 lbs

9' x 35'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H30+5SDBCL3-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 35'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H30+5SDBCL-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

9' x 35'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H30+5SDBCL-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

9' x 35'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H30+5SDBCL3-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 38'

Steel GN Deckover SDBC 24K
25900 lbs
Model #
H33+5SDBCL-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

9' x 40'

Steel BP Deckover SDBC 20K
22500 lbs
Model #
H35+5SDBCL-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 40'

Steel GN Deckover SDBC 20K
22500 lbs
Model #
H35+5SDBCL-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
8990 lbs

9' x 40'

Steel GN Deckover SDBC 21K
23100 lbs
Model #
H35+5SDBCL3-GN-231
GVWR (lbs)
23100 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

9' x 40'

Steel BP Deckover SDBC 24K
25900 lbs
Model #
H35+5SDBCL-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

9' x 40'

Steel GN Deckover SDBC 24K
25900 lbs
Model #
H35+5SDBCL-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
9100 lbs

9' x 40'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H35+5SDBCL-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

9' x 40'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H35+5SDBCL3-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 40'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H35+5SDBCL3-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 40'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H35+5SDBCL-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

9' x 45'

Steel BP Deckover SDBC 20K
22500 lbs
Model #
H40+5SDBCL-B-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 45'

Steel GN Deckover SDBC 20K
22500 lbs
Model #
H40+5SDBCL-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 45'

Steel GN Deckover SDBC 21K
23100 lbs
Model #
H40+5SDBCL3-GN-231
GVWR (lbs)
23100 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

9' x 45'

Steel BP Deckover SDBC 24K
25900 lbs
Model #
H40+5SDBCL-B-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight

9' x 45'

Steel GN Deckover SDBC 24K
25900 lbs
Model #
H40+5SDBCL-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
10270 lbs

9' x 45'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H40+5SDBCL-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight
10500 lbs

9' x 45'

Steel GN Deckover SDBC 30K
30000 lbs
Model #
H40+5SDBCL3-GN-300
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

9' x 45'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H40+5SDBCL-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight

9' x 45'

Steel BP Deckover SDBC 30K
32000 lbs
Model #
H40+5SDBCL3-B-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.

Configure & Quote

Let us know what you’re looking for by submitting the form below. We’ll forward your information to the H&H Trailers dealer in your area, and they’ll reach out with a personalized quote.

Low Profile Dual Tandem Deckover Trailer

"*" indicates required fields

Select a Length / Width
Select GVWR (lbs.)

Your Contact Information

Name*
This field is hidden when viewing the form
This field is hidden when viewing the form
