Industrial Equipment Trailer

Bed Width: 82′
Bed Length: 14′-26′
GVWR: 14,000-16,000 lbs
GAWR: 16-8,000 lbs/axle
HH Industrial Equipment Trailer Front

Slipper Spring Suspension – Built for Heavy Loads

This durable suspension system ensures smooth towing even with the heaviest equipment.

2" Pressure-Treated Pine Deck with Board Retainers – Built to Last

The rugged deck construction resists rot while front and rear board retainers keep everything in place.

Industrial Grade Polymer Finish – Maximum Protection

A thick, high-performance finish stands up against corrosion, weather, and the demands of industrial use.

Spring Assist Skid Loader Ramps

5′ heavy duty stand-up ramps are ready for your equipment and fold up easily for transport.

Industrial Equipment Trailer

Built tough for heavy-duty use, H&H Industrial Equipment Trailers deliver reliable performance on every job site. Available in standard, full-width, and gooseneck models with GVWRs ranging from 14,000 to 16,000 pounds, these equipment trailers are designed to haul your investment securely and efficiently.

Key Benefits

Slipper Spring Suspension – Built for Heavy Loads

This durable suspension system ensures smooth towing even with the heaviest equipment.

2" Pressure-Treated Pine Deck with Board Retainers – Built to Last

The rugged deck construction resists rot while front and rear board retainers keep everything in place.

Industrial Grade Polymer Finish – Maximum Protection

A thick, high-performance finish stands up against corrosion, weather, and the demands of industrial use.

Spring Assist Skid Loader Ramps

5' heavy duty stand-up ramps are ready for your equipment and fold up easily for transport.

Explore This Trailer

HH Industrial Equipment Trailer Front

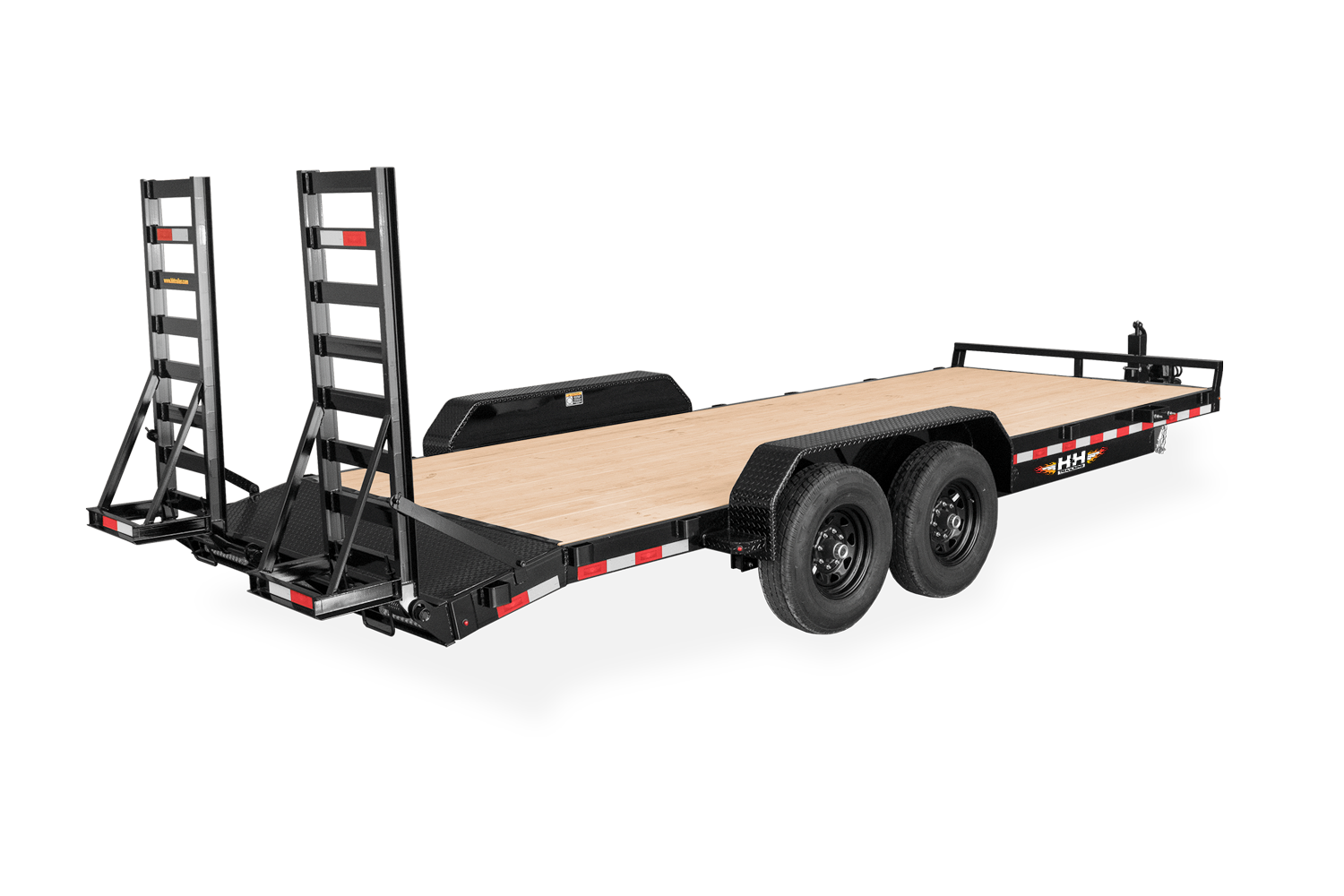

HH Industrial Equipment Trailer Rear
HH Industrial Equipment Trailer

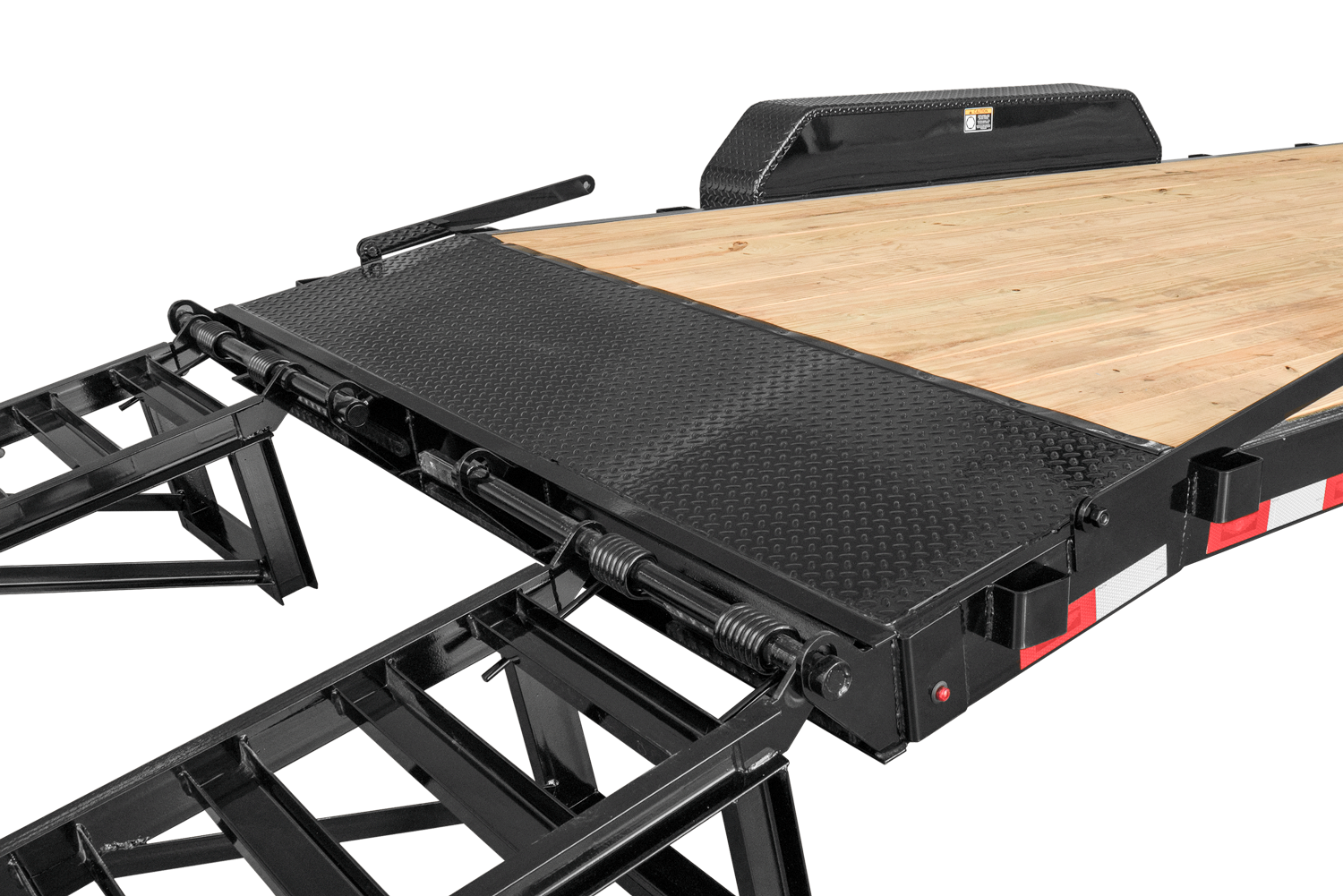

HH Industrial Equipment Trailer Beavertail
HH Industrial Equipment Trailer Ramps Down
HH Industrial Equipment Trailer Studio

Model Color Options:

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose an H&H Industrial Equipment Trailer?

Overview

When it comes to transporting heavy equipment, H&H Industrial Equipment Trailers are engineered to perform. Built with premium-grade materials and top-tier craftsmanship, these trailers deliver the strength, stability, and durability required for tough industrial environments. Whether you’re hauling skid steers, excavators, or other machinery, H&H equipment trailers help you get the job done with confidence.

Available Models

H&H offers a complete line of industrial equipment trailers designed to meet a wide range of needs. Choose from standard bumper pull models, full-width designs, and rugged gooseneck configurations for maximum capacity and control. Gross Vehicle Weight Ratings (GVWR) range from 14,000 to 16,000 pounds, giving you the flexibility to match the trailer to your specific equipment and hauling demands. No matter which model you choose, every trailer is built with the same commitment to quality and durability.

Standard Features

Every H&H Industrial Equipment Trailer comes equipped with high-strength slipper spring suspension, a 2" pressure-treated pine deck reinforced with board retainers, and an industrial-grade polymer finish for superior protection. The fully sealed wiring harness ensures dependable operation of lights and brakes in all weather conditions. Heavy-duty stake pockets, adjustable couplers, and a dovetail with spring assist ramps are standard, giving you the flexibility you need to secure various loads with ease.

Options

Customize your trailer with a wide variety of available options to suit your work style. Choose from additional tie-down options, upgraded axles, drive-over fenders, or deck extensions for even easier loading. Available winch mounting plates and toolboxes help make your trailer even more functional for any job site.

Models

7' x 16'

Steel Industrial
14000 lbs
Model #
H8216IL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
2700 lbs

7' x 18'

Steel Industrial
14000 lbs
Model #
H8218IL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
2660 lbs

7' x 18'

Steel Industrial
16000 lbs
Model #
H8218IL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
3410 lbs

7' x 20'

Steel Industrial
14000 lbs
Model #
H8220IL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3100 lbs

7' x 20'

Steel Industrial GN
14000 lbs
Model #
H8216+4ILSDR-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3970 lbs

7' x 20'

Steel Industrial GN
14000 lbs
Model #
H8220IL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3640 lbs

7' x 20'

Steel Industrial
16000 lbs
Model #
H8220IL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
3490 lbs

7' x 20'

Steel Industrial GN
16000 lbs
Model #
H8220IL-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4150 lbs

7' x 22'

Steel Industrial
14000 lbs
Model #
H8222IL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3200 lbs

7' x 22'

Steel Industrial GN
14000 lbs
Model #
H8218+4ILSDR-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4160 lbs

7' x 22'

Steel Industrial GN
14000 lbs
Model #
H8222IL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3830 lbs

7' x 22'

Steel Industrial
16000 lbs
Model #
H8222IL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
3900 lbs

7' x 22'

Steel Industrial GN
16000 lbs
Model #
H8222IL-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4385 lbs

7' x 24'

Steel Industrial
14000 lbs
Model #
H8224IL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3700 lbs

7' x 24'

Steel Industrial GN
14000 lbs
Model #
H8220+4ILSDR-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4730 lbs

7' x 24'

Steel Industrial GN
14000 lbs
Model #
H8224IL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4410 lbs

7' x 24'

Steel Industrial
16000 lbs
Model #
H8224IL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4150 lbs

7' x 24'

Steel Industrial GN
16000 lbs
Model #
H8220+4ILSDR-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight

7' x 26'

Steel Industrial
14000 lbs
Model #
H8226IL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3500 lbs

7' x 26'

Steel Industrial GN
14000 lbs
Model #
H8226IL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4400 lbs

7' x 26'

Steel Industrial GN
16000 lbs
Model #
H8222+4ILSDR-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight

7' x 28'

Steel Industrial
14000 lbs
Model #
H8228IL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4070 lbs

7' x 28'

Steel Industrial GN
16000 lbs
Model #
H8224+4ILSDR-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
