Hydraulic Tail Deckover Trailer

Bed Width: 102′
Bed Length: 21′-25′
GVWR: 22,500-25,900 lbs
GAWR: 30-12,000 lbs/axle
HH Hydraulic Tail Deck Over Trailer Front View Black Wheels

Power Up/Down 9' Hydraulic Dovetail – Simplifies Loading

Hydraulic tail lowers and raises with ease, making equipment loading safer and faster.

12" I-Beam Frame with Torque Tube – Reinforces Strength

Heavy-duty frame construction resists flex and twist, even under demanding loads.

Underbody Control Box – Easy Access, Secure Operation

Centralized control station is weather-protected and located for safe, efficient use.

Integrated Gooseneck Tool Box – Built-In Gear Storage

Spacious locking toolbox provides convenient space for tie-downs and tools.

Hydraulic Tail Deckover Trailer

Built for high-efficiency loading and heavy-duty equipment hauling, H&H Hydraulic Tail Deckover Trailers feature a 9-foot power hydraulic dovetail for effortless transitions and robust I-Beam construction for superior strength. These flatbed trailers are engineered to perform under pressure, combining smart control access, enhanced tool storage, and premium durability into one reliable deck over trailer package.

Key Benefits

Power Up/Down 9' Hydraulic Dovetail – Simplifies Loading

Hydraulic tail lowers and raises with ease, making equipment loading safer and faster.

12" I-Beam Frame with Torque Tube – Reinforces Strength

Heavy-duty frame construction resists flex and twist, even under demanding loads.

Underbody Control Box – Easy Access, Secure Operation

Centralized control station is weather-protected and located for safe, efficient use.

Integrated Gooseneck Tool Box – Built-In Gear Storage

Spacious locking toolbox provides convenient space for tie-downs and tools.

Explore This Trailer

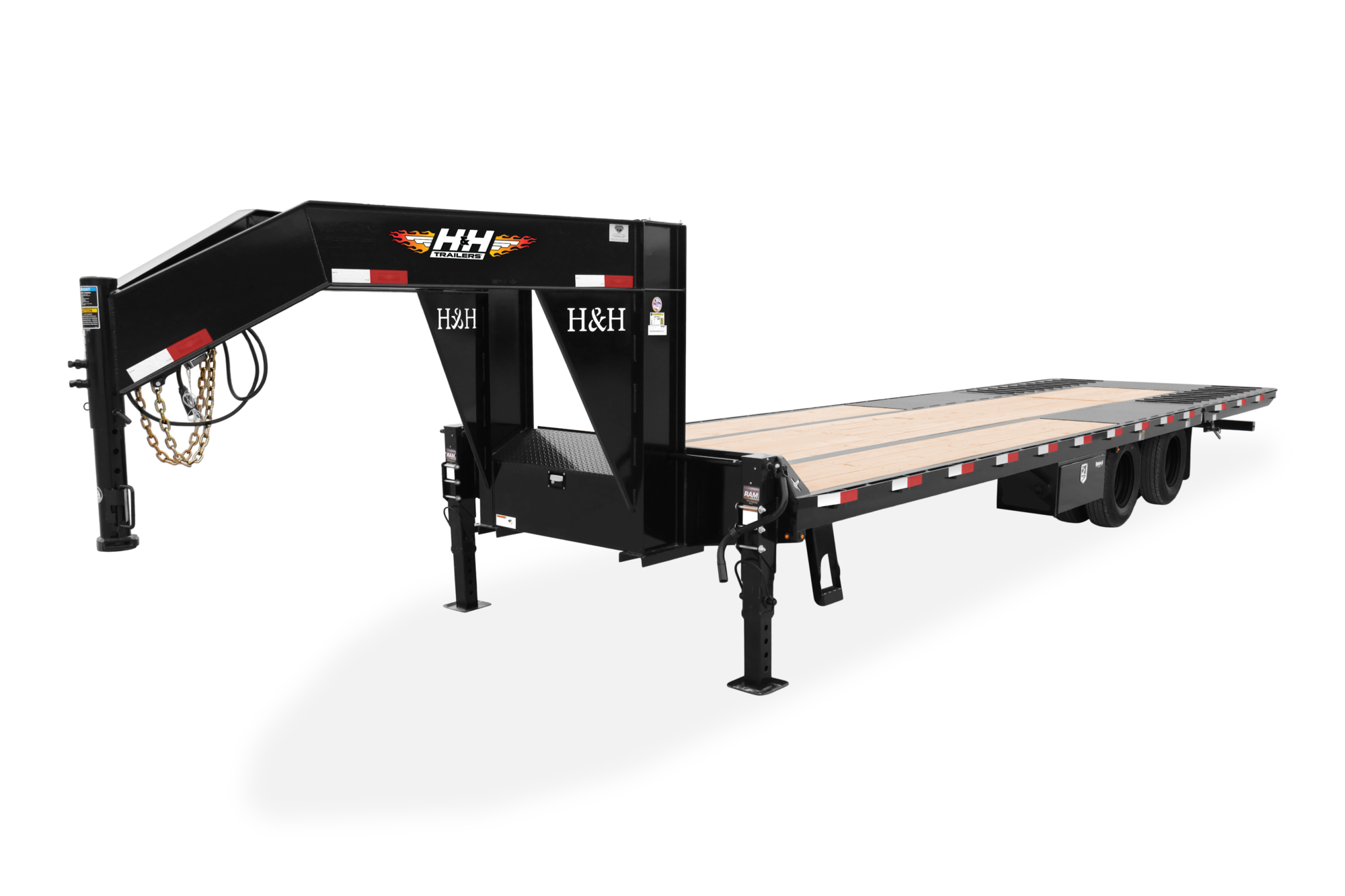

HH Hydraulic Tail Deck Over Trailer Front View Black Wheels

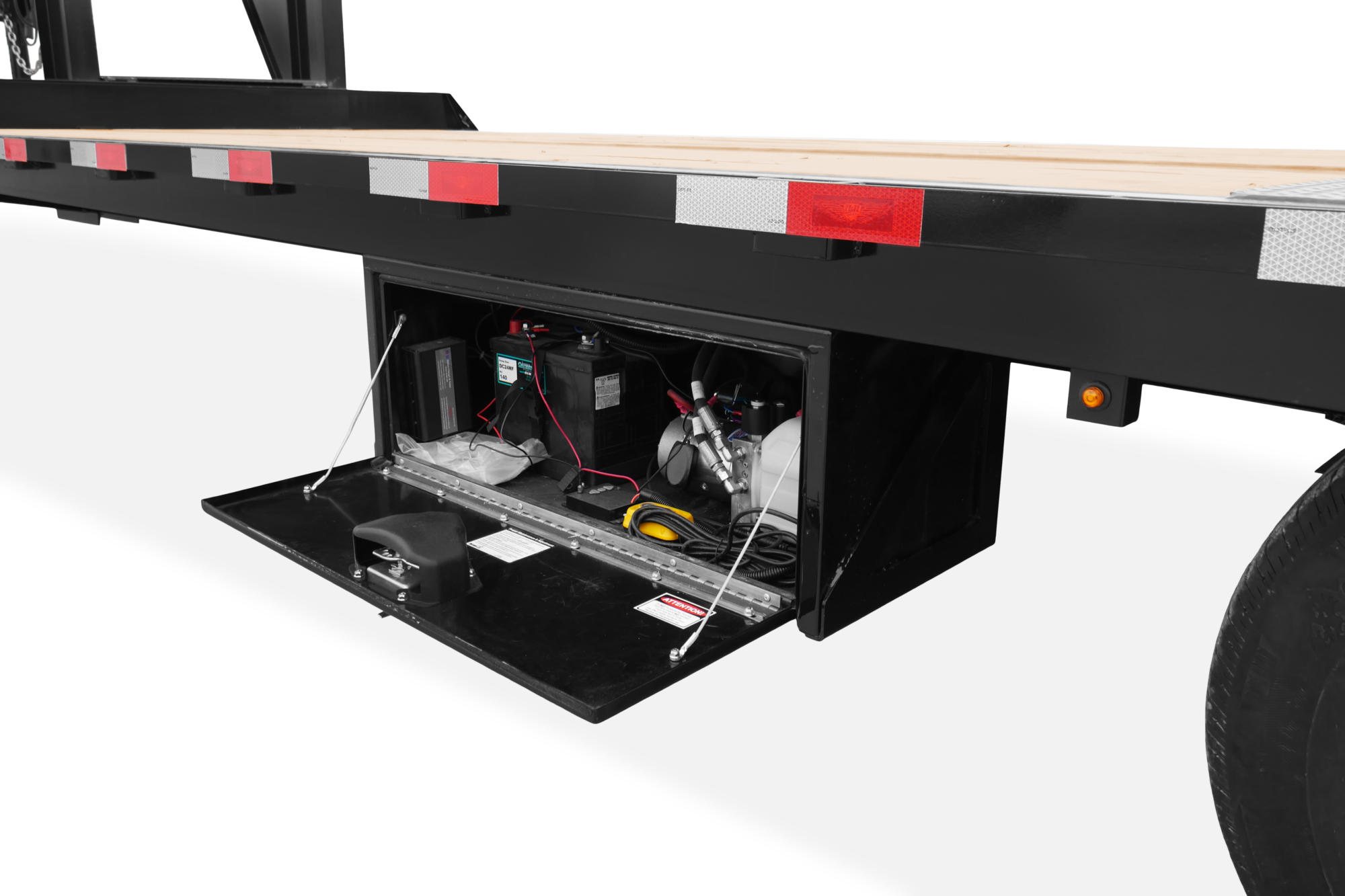

HH Hydraulic Tail Deck Over Trailer Underbody Control Box

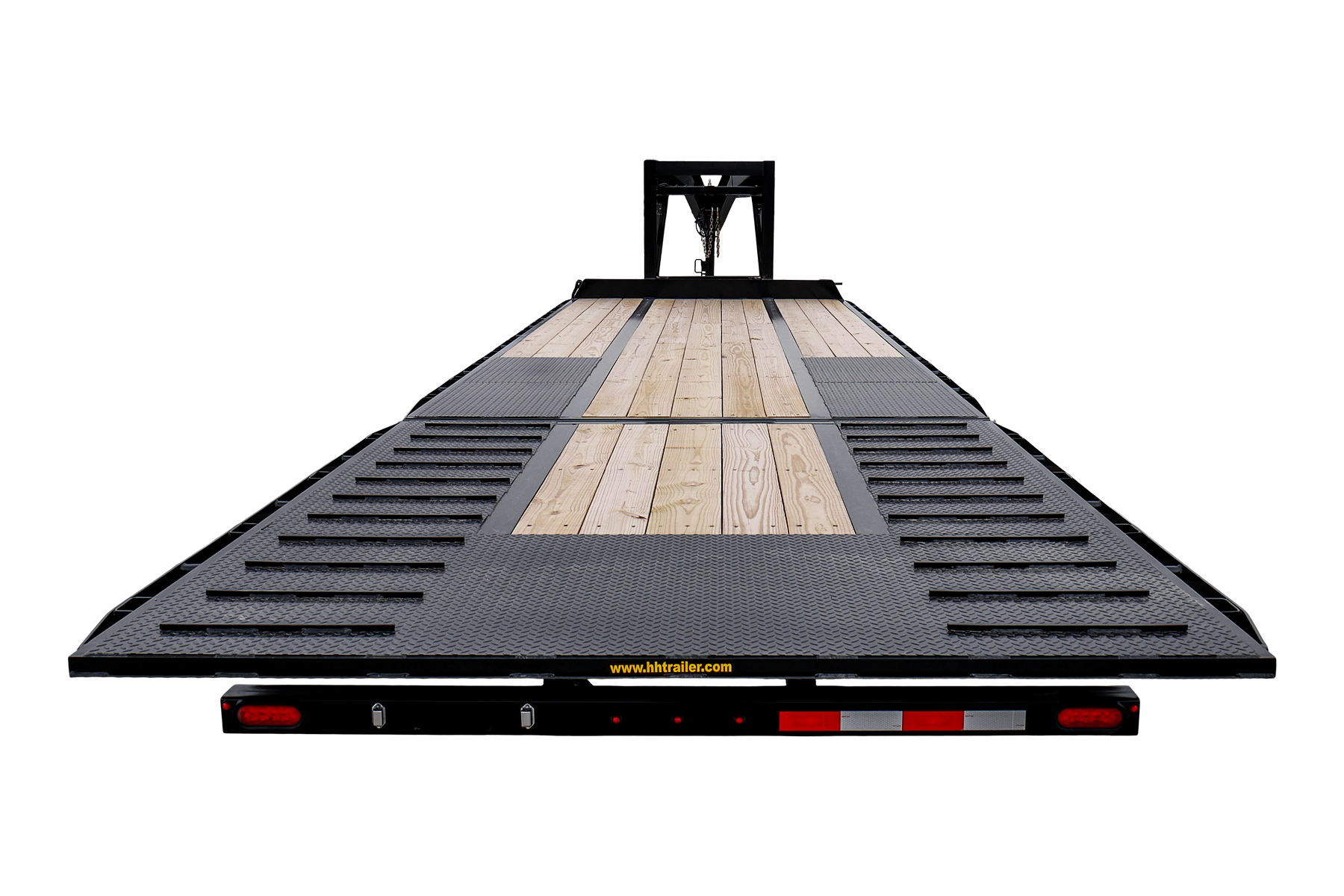

HH Hydraulic Tail Deck Over Trailer Rear View

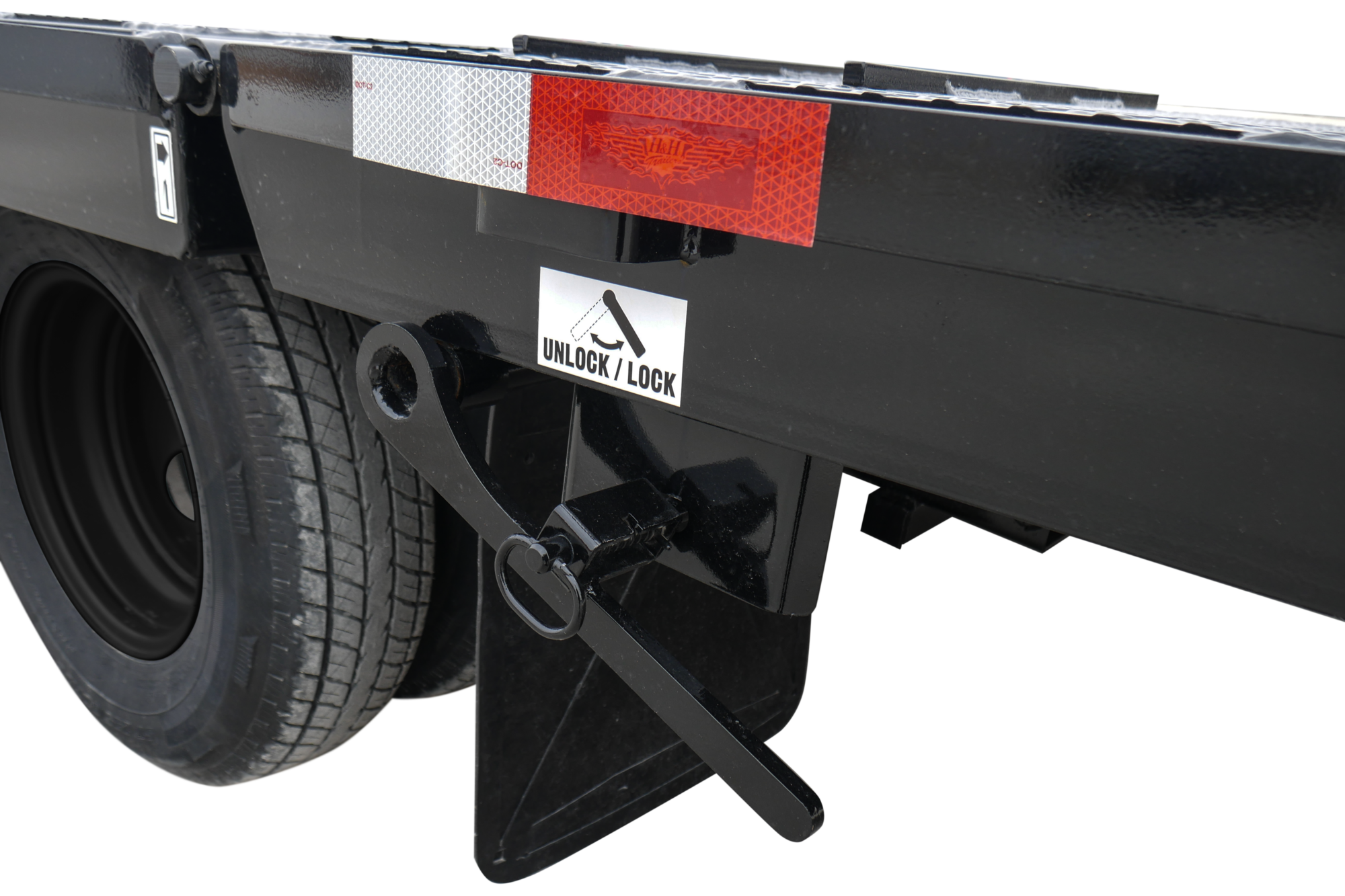

HH Hydraulic Tail Deck Over Trailer Latch Black Wheels

Model Color Options:

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose an H&H Hydraulic Tail Deckover Trailer?

Overview

When your job requires serious hauling capability, the H&H Hydraulic Tail Deckover Trailer delivers. Designed to bridge the gap between efficiency and rugged durability, this trailer features a full-width 9-foot hydraulic dovetail, giving you a safer, faster, and more reliable way to load heavy equipment. Built as a true workhorse, it’s ideal for contractors, fleet operators, and anyone needing a dependable deck over trailer.

Available Models

Offered in gooseneck configuration, the Hydraulic Tail Deckover Trailers are available in multiple lengths and GVWR configurations to suit a range of commercial and industrial needs. Whether you're transporting skid steers, excavators, or other heavy gear, this flatbed trailer gives you the flexibility to get the job done.

Standard Features

All models come standard with a 12" I-Beam main frame and torque tube, the power up/down 9' hydraulic dovetail, and tandem dual axles for balanced load support. A heavy-duty underbody toolbox protects your hydraulic controls, while stake pockets and rub rails provide versatile tie-down points. LED lighting, treated wood decking, and a powder coat finish round out the package with safety and longevity in mind.

Options

Customize your trailer with add-ons like wireless remote controls, hydraulic jacks, solar charges, and winches. Additional storage solutions, spare tires, and alternate decking materials can also be added to match your specific hauling requirements.

Models

9' x 30'

Steel Deckover Hydraulic Tail
22500 lbs
Model #
H21+9HTHD-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7350 lbs

9' x 30'

Steel Deckover Hydraulic Tail
25900 lbs
Model #
H21+9HTHD-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
7840 lbs

9' x 32'

Steel Deckover Hydraulic Tail
22500 lbs
Model #
H23+9HTHD-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7800 lbs

9' x 32'

Steel Deckover Hydraulic Tail
25900 lbs
Model #
H23+9HTHD-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8100 lbs

9' x 34'

Steel Deckover Hydraulic Tail
22500 lbs
Model #
H25+9HTHD-GN-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
8200 lbs

9' x 34'

Steel Deckover Hydraulic Tail
25900 lbs
Model #
H25+9HTHD-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8800 lbs

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
