Gravity Tilt Trailer

Bed Width: 82′
Bed Length: 14′-20′
GVWR: 14,000-16,000 lbs
GAWR: 16-8,000 lbs/axle
HH Tandem Axle Gravity Tilt Trailer Front Not Tilted

Slipper Spring Suspension – Rugged Ride and Superior Load Stability

Our heavy-duty slipper spring suspension smooths out the roughest roads, providing consistent support for heavy equipment loads.

Reverse, Taper-cut Dovetail – Smooth and Simple Loading

The reverse, taper-cut dovetail creates a low approach angle, allowing safe, easy loading and unloading of all types of equipment.

Heavy-duty Hinge Latches – Rugged Strength You Can Trust

Strong hinge latches lock the deck firmly during transport, ensuring your equipment trailers stay secure mile after mile.

Cushion Cylinder with Stop Valve – Precision Tilt Control

Allows you to pause or hold the tilt angle securely, giving you added control during loading and unloading.

Gravity Tilt Trailer

Move your heaviest loads with precision using our Gravity Tilt Trailers, the ultimate tilt trailer choice for reliable, efficient hauling. Built tough for serious equipment transport.

Key Benefits

Slipper Spring Suspension – Rugged Ride and Superior Load Stability

Our heavy-duty slipper spring suspension smooths out the roughest roads, providing consistent support for heavy equipment loads.

Reverse, Taper-cut Dovetail – Smooth and Simple Loading

The reverse, taper-cut dovetail creates a low approach angle, allowing safe, easy loading and unloading of all types of equipment.

Heavy-duty Hinge Latches – Rugged Strength You Can Trust

Strong hinge latches lock the deck firmly during transport, ensuring your equipment trailers stay secure mile after mile.

Cushion Cylinder with Stop Valve – Precision Tilt Control

Allows you to pause or hold the tilt angle securely, giving you added control during loading and unloading.

Explore This Trailer

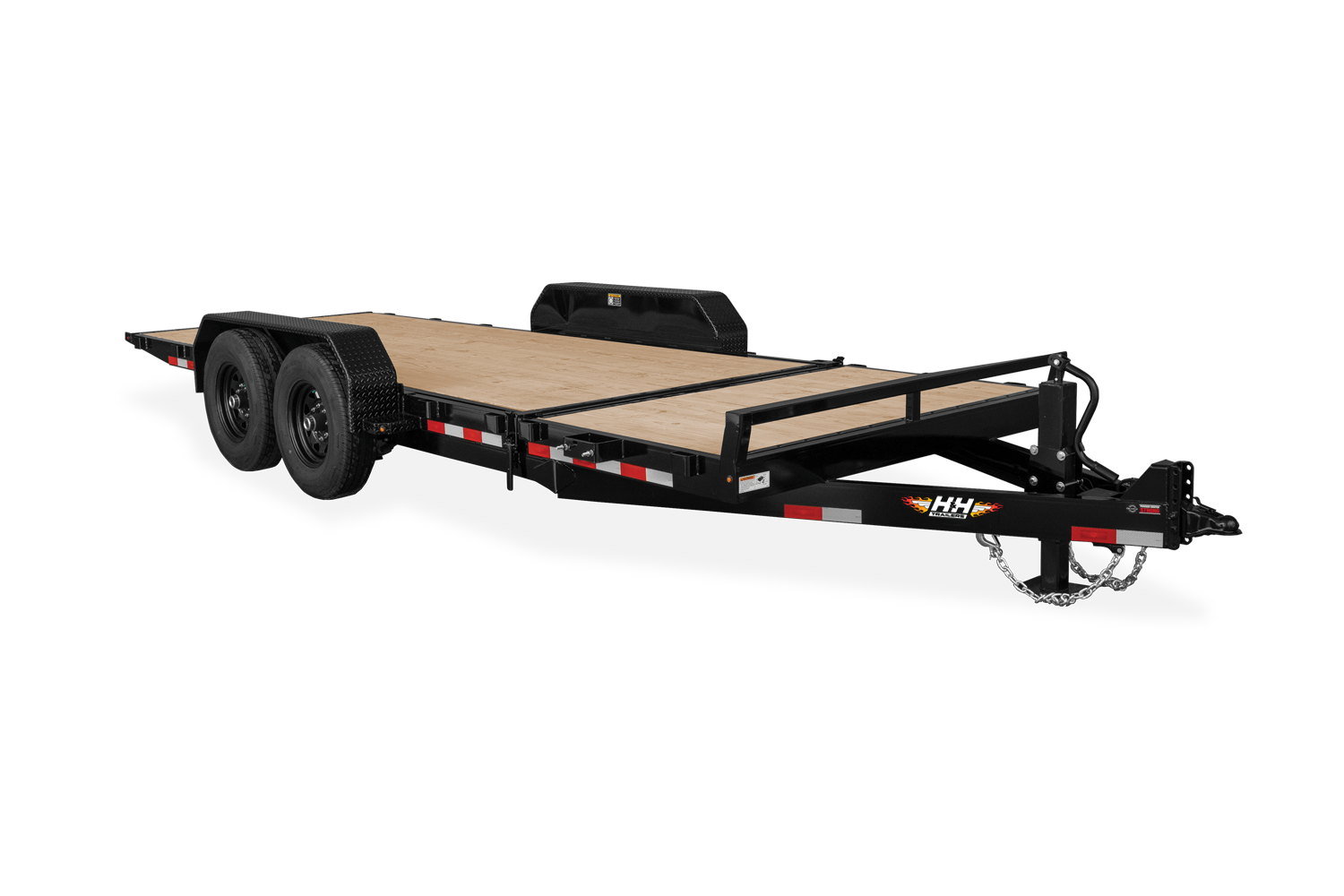

HH Tandem Axle Gravity Tilt Trailer Front Not Tilted

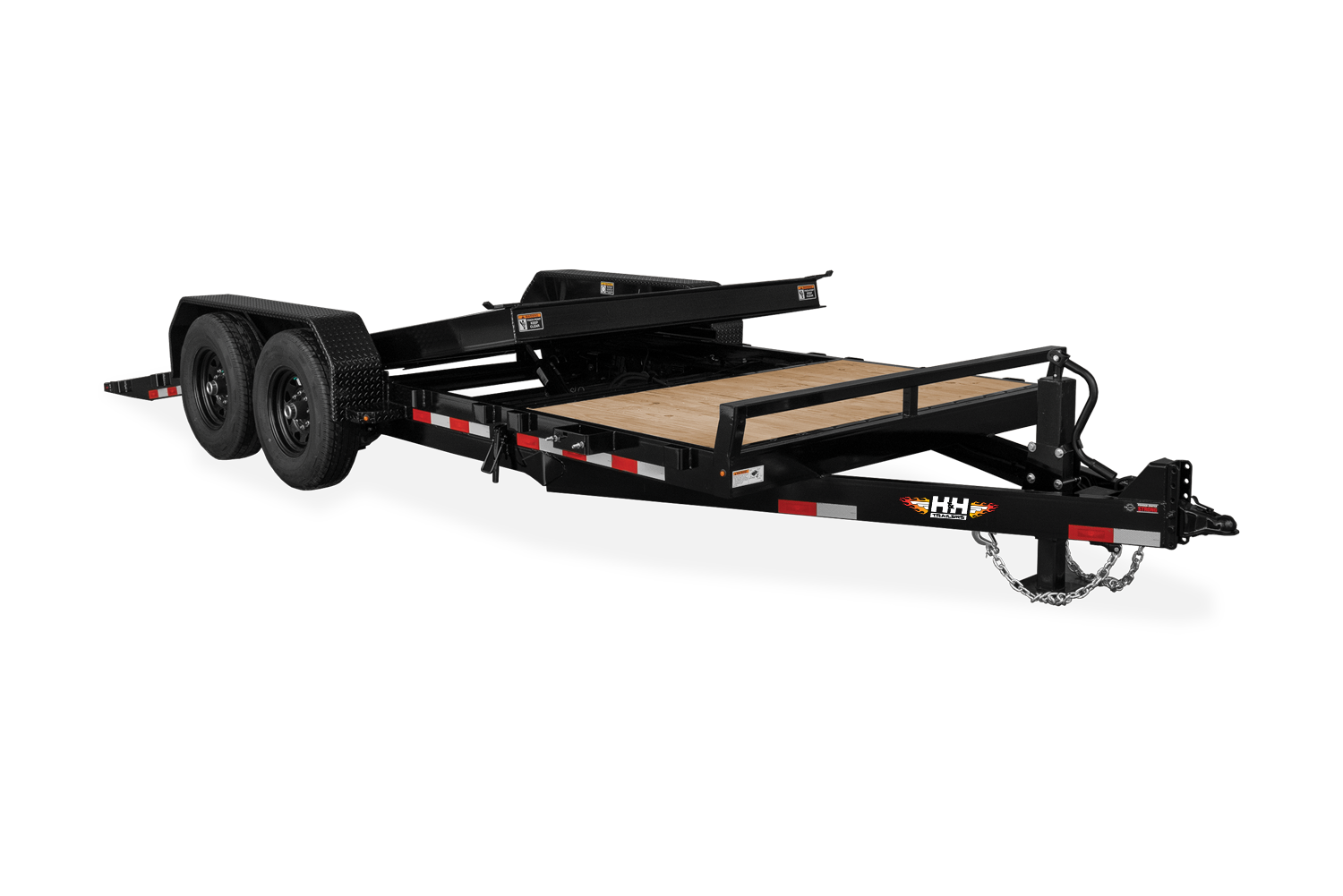

HH Tandem Axle Gravity Tilt Trailer Front Tilted

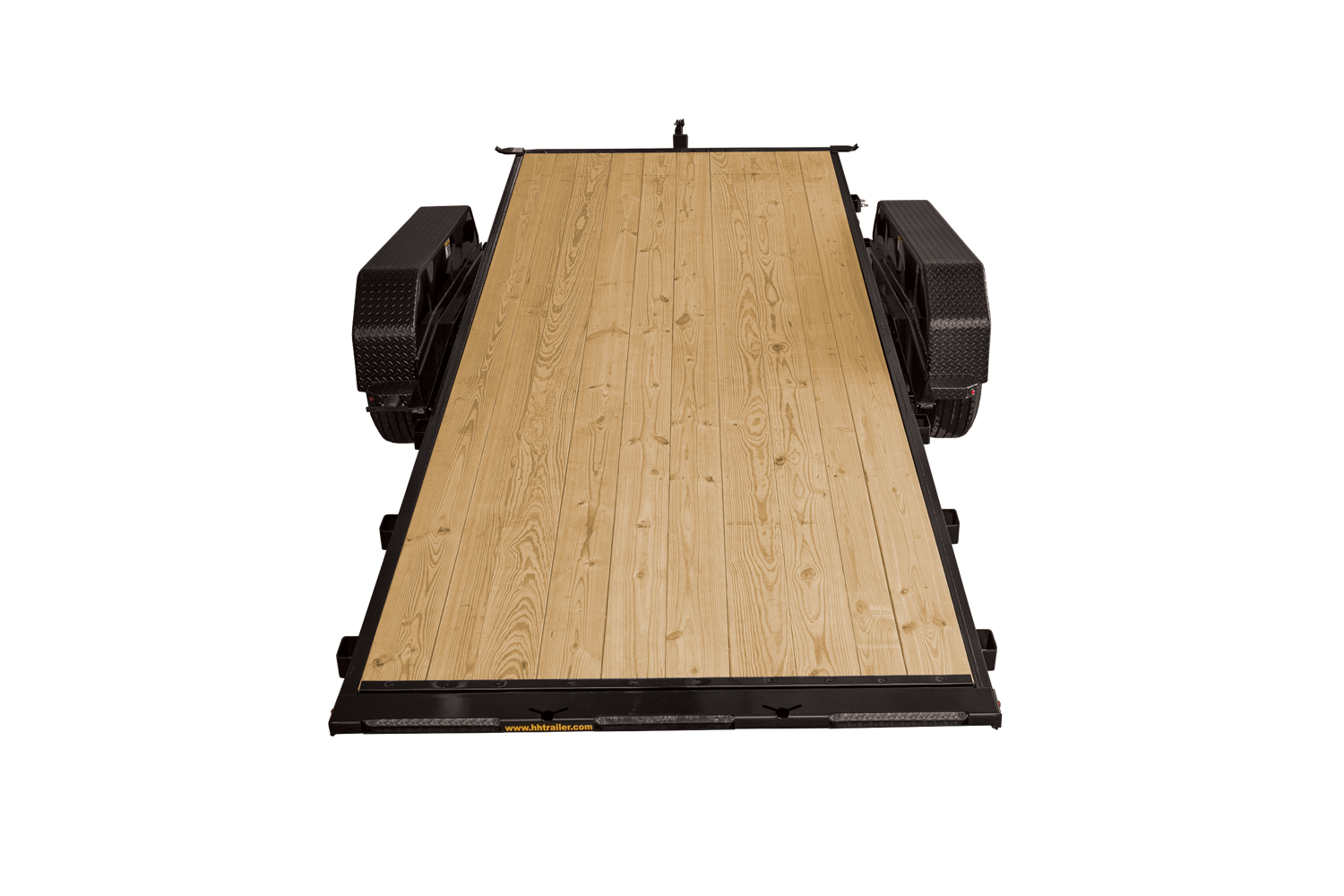

HH Tandem Axle Gravity Tilt Trailer Rear Deck

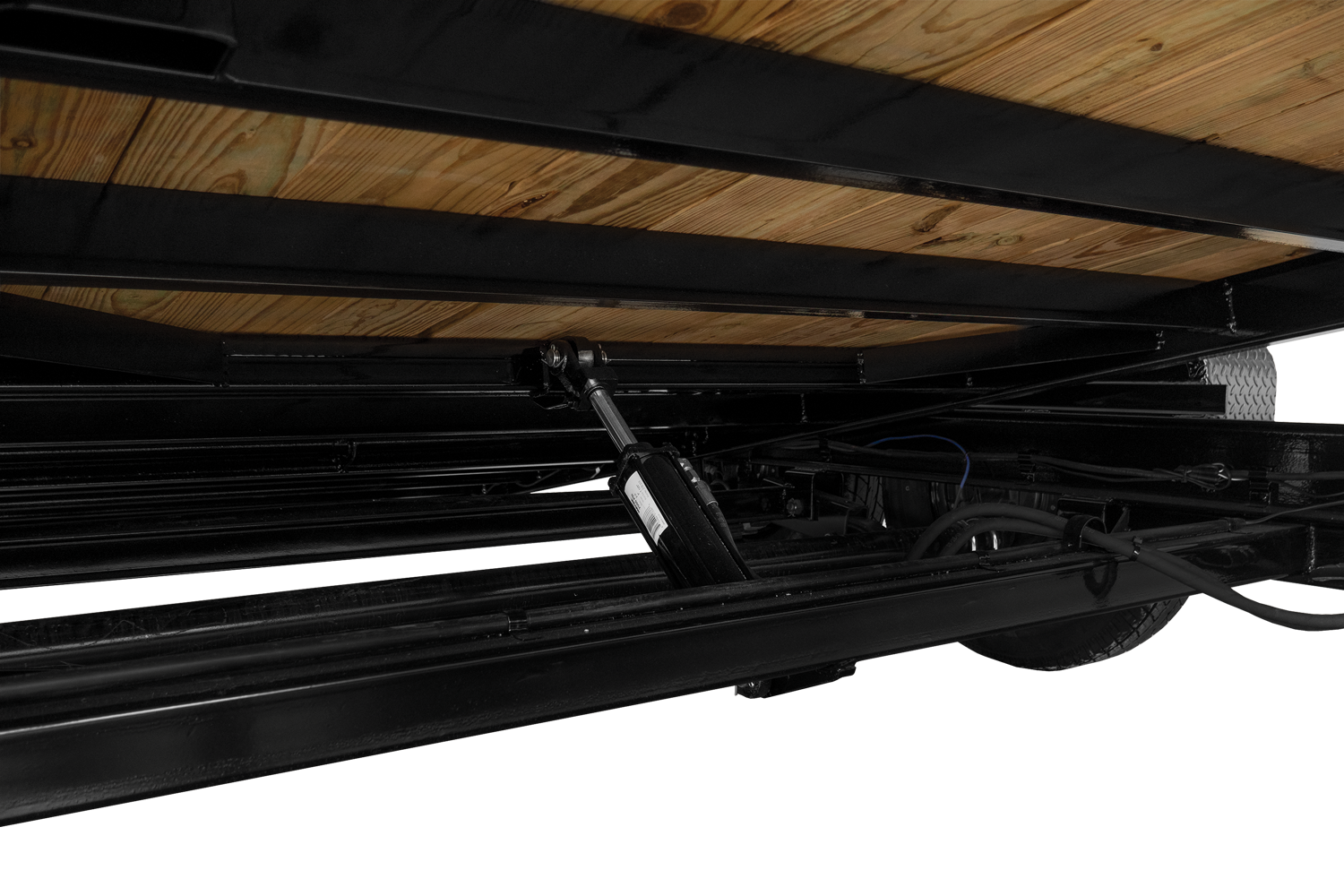

HH Tandem Axle Gravity Tilt Trailer Hydraulic Cylinder

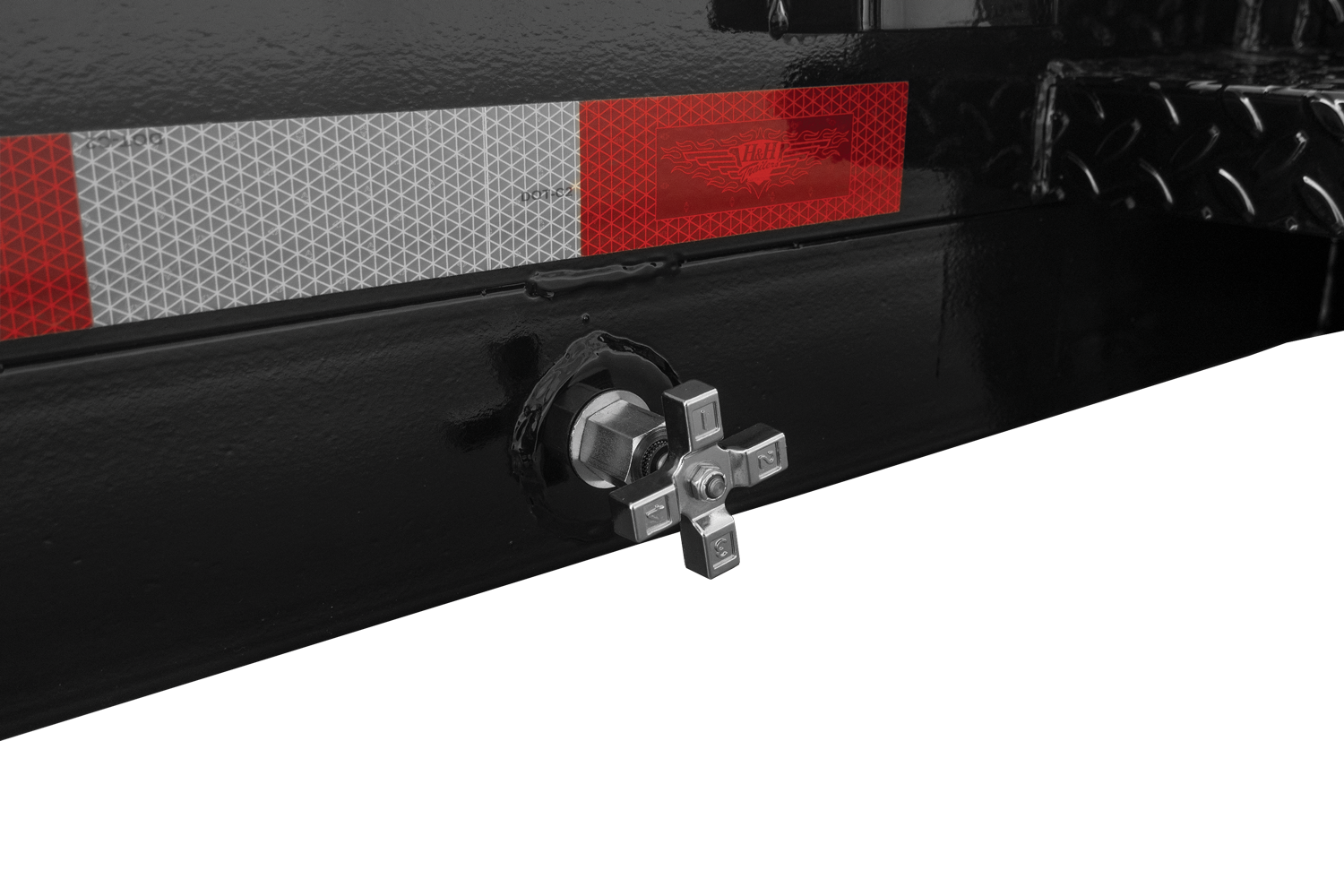

HH Tandem Axle Gravity Tilt Trailer Hydraulic Stop Valve

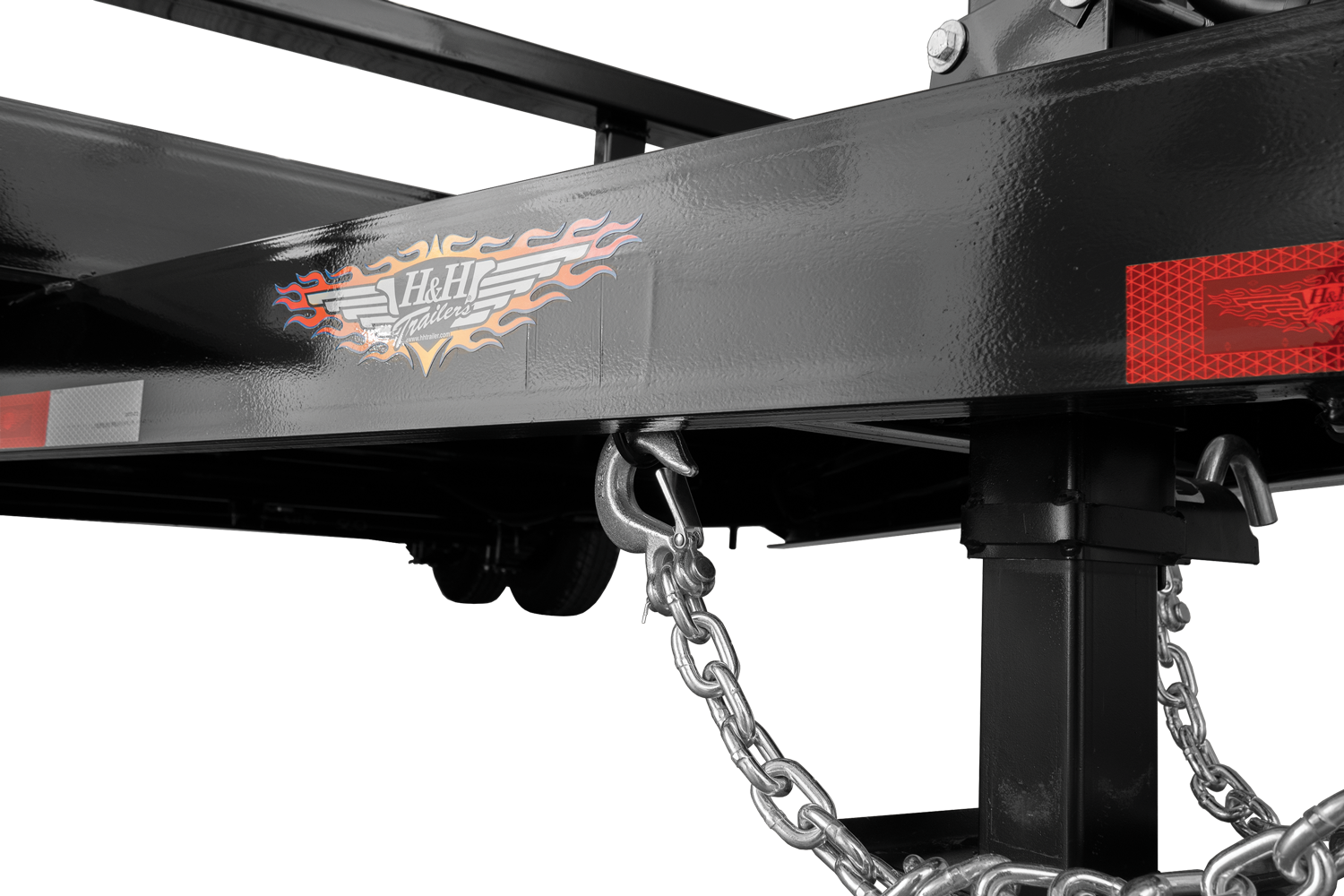

HH Tandem Axle Gravity Tilt Trailer Safety Chains

Model Color Options:

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose an H&H Gravity Tilt Trailer?

Overview

H&H Gravity Tilt Trailers are designed for professional-grade performance, delivering a powerful tilt trailer solution for transporting a wide range of equipment. Built with a focus on stability, ease of loading, and long-term durability, these trailers make every haul more efficient and reliable for contractors, equipment owners, and rental fleets.

Available Models

Choose from a variety of Gravity Tilt Trailer models ranging from 16' full-tilt to 20' with a 6' stationary deck. 14 and 16K weight ratings are available to match your specific hauling needs. From skid steers and mini-excavators to tractors and utility equipment, there’s a tilt trailer model engineered for your toughest jobs.

Standard Features

Every Gravity Tilt Trailer comes standard with slipper spring suspension for smooth, dependable ride quality, a reverse taper-cut dovetail for easy loading, heavy-duty hinge latches to lock the deck securely, and a 12K setback tongue jack for effortless hitching. Durable pressure-treated decking, stake pockets with rub rails, LED lighting, and a premium powder coat finish ensure your equipment trailers stay ready for any challenge. The intuitive tilt operation features a straightforward lever system which lowers the bed to a gentle angle, making it easy to load and unload heavy machinery safely. This design helps protect your equipment from damage while cutting down on the physical effort needed during operation.

Options

Customize your trailer with a wide range of available options, including extra tie-downs, toolboxes, aluminum wheel upgrades, and winch packages to make your tilt trailer even more versatile and hardworking.

Models

7' x 16'

Steel Gravity Tilt 14k
14000 lbs
Model #
H16GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3460 lbs

7' x 16'

Steel Gravity Tilt 16k
16000 lbs
Model #
H16GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
3660 lbs

7' x 18'

Steel Gravity Tilt 14k
14000 lbs
Model #
H18GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3400 lbs

7' x 18'

Steel Gravity Tilt 14k
14000 lbs
Model #
H14+4GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
2710 lbs

7' x 18'

Steel Gravity Tilt 16k
16000 lbs
Model #
H18GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4025 lbs

7' x 20'

Steel Gravity Tilt 14k
14000 lbs
Model #
H20GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3740 lbs

7' x 20'

Steel Gravity Tilt 14k
14000 lbs
Model #
H16+4GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3200 lbs

7' x 20'

Steel Gravity Tilt GN 14k
14000 lbs
Model #
H16+4GTL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3750 lbs

7' x 20'

Steel Gravity Tilt 16k
16000 lbs
Model #
H16+4GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
3830 lbs

7' x 20'

Steel Gravity Tilt 16k
16000 lbs
Model #
H20GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4240 lbs

7' x 20'

Steel Gravity Tilt GN 16k
16000 lbs
Model #
H16+4GTL-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4620 lbs

7' x 22'

Steel Gravity Tilt 14k
14000 lbs
Model #
H16+6GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3230 lbs

7' x 22'

Steel Gravity Tilt 14k
14000 lbs
Model #
H18+4GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3310 lbs

7' x 22'

Steel Gravity Tilt GN 14k
14000 lbs
Model #
H16+6GTL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4120 lbs

7' x 22'

Steel Gravity Tilt GN 14k
14000 lbs
Model #
H18+4GTL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight

7' x 22'

Steel Gravity Tilt 16k
16000 lbs
Model #
H18+4GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight

7' x 22'

Steel Gravity Tilt 16k
16000 lbs
Model #
H16+6GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
3900 lbs

7' x 22'

Steel Gravity Tilt GN 16k
16000 lbs
Model #
H18+4GTL-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4390 lbs

7' x 22'

Steel Gravity Tilt GN 16k
16000 lbs
Model #
H16+6GTL-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4385 lbs

7' x 24'

Steel Gravity Tilt 14k
14000 lbs
Model #
H20+4GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3525 lbs

7' x 24'

Steel Gravity Tilt 14k
14000 lbs
Model #
H18+6GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3590 lbs

7' x 24'

Steel Gravity Tilt GN 14k
14000 lbs
Model #
H20+4GTL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4070 lbs

7' x 24'

Steel Gravity Tilt GN 14k
14000 lbs
Model #
H18+6GTL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4060 lbs

7' x 24'

Steel Gravity Tilt 16k
16000 lbs
Model #
H18+6GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4220 lbs

7' x 24'

Steel Gravity Tilt 16k
16000 lbs
Model #
H20+4GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
3945 lbs

7' x 24'

Steel Gravity Tilt 16k
16000 lbs
Model #
H16+8GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4110 lbs

7' x 24'

Steel Gravity Tilt GN 16k
16000 lbs
Model #
H16+8GTL-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4785 lbs

7' x 24'

Steel Gravity Tilt GN 16k
16000 lbs
Model #
H18+6GTL-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4580 lbs

7' x 26'

Steel Gravity Tilt 14k
14000 lbs
Model #
H20+6GTL-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3700 lbs

7' x 26'

Steel Gravity Tilt GN 14k
14000 lbs
Model #
H20+6GTL-GN-140
GVWR (lbs)
14000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4230 lbs

7' x 26'

Steel Gravity Tilt 16k
16000 lbs
Model #
H20+6GTL-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight

7' x 26'

Steel Gravity Tilt GN 16k
16000 lbs
Model #
H20+6GTL-GN-160
GVWR (lbs)
16000 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5320 lbs

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
